We stock hardtails by Marin, Trek, Whyte, Mongoose and GT.

Our biggest hardtail ranges are Marin and Trek. We started stocking Marin in 1990, soon after they launched their bikes into the UK and they have impressed us ever since. We have only recently started stocking Trek, but one of the main attractions was the quality of their hardtail range. Both brands feature excellent frame quality on their bikes. If you were to pick bikes from various manufacturers at the same price points, the Marins and Treks would usually have the best quality frame... strong, good handling and very lightweight on most of the models together with a very good frame warranty. Other brands usually put less emphasis on frame lightness, or might not give a long frame warranty. With the exception of the 4300 and 3700 models, the Treks have a longer top tube than the Marins. This gives a more aggressive, less relaxed riding position. Obviously this will suit some riders and not others.

At Stanley Fearn's we like the Marin and Trek design philosophy, because the frame is the most important part of the bike and it is the one thing you are never likely to change. If you use your bike heavily, after a few years you may well have replaced most of the moving parts because of wear or crash damage. Starting off with the best quality frame, then you have always got an excellent heart to your bike, which you can fit bits of your choice to over the coming years.

Obviously not everyone agrees with this way of thinking, and we like to offer a choice for our customers. If you are not too bothered about having the lightest frame but are looking for a good value-for-money package then the Mongoose, GT and Claud Butler bikes may appeal to you. Of these brands we are particularly impressed with GT and Mongoose - they have a consistently good build quality and offer very good component packages at their price points.

Raleigh and Falcon are cheaper brands but as you would expect, they don't give you the quality of the dearer makes. We can get any of their models in to order for you, though we don't usually choose to stock them now.

At the other end of the spectrum, Whyte only make exotic hardtails, but if you have Ł2000 or Ł3000 to spare...

Whyte 2008

19-TEAM Ł2999

Whyte 19 Team

Sizes	S, M. L
Frame	9AN6 T6 Aluminium, Custom Drawn Multi Butted and High Modulus Carbon Seat Stays with Adjustable Bolt-on Dropouts
Fork	RockShox SID World Cup 100mm Travel, Remote Pop-Lock Motion Control
Shifters	Shimano XTR SL-M970
Brake Levers	Shimano XTR
Crankset	Shimano XTR FC-M970, 44/32/22 with Hollowtech II Arms and Carbon Middle Chain Ring
Chain	Shimano XTR
Front Mech	Shimano XTR FD-M970
Rear Mech	Shimano XTR, Shadow Carbon, RD-M975
Cassette	Shimano CS-M970 11-32
Rear Hub	Shimano XTR Wheelset WH-M975 with Centre Lock Disk Rotors
Front Hub	Shimano XTR Wheelset WH-M975 with Centre Lock Disk Rotors
Bottom Bracket	Shimano XTR Big Pipe Billet Integrated with Crankset
Brakes	Shimano XTR 160mm Rotors
Rims	Shimano XTR Wheelset WH-M975
Spokes	Shimano XTR Wheelset WH-M975
Tyres	Panaracer Razer 26 X 2.1" with Kevlar Bead
Headset	FSA Orbit Extreme Pro, Stainless Steel Sealed Cartridge Bearings
Seatpost	Thomson, 27.2mm x 400mm, 7 degress layback
Saddle	Fi'zi:k Gobi with Ti Rails
Bar	Easton Monkeylite SL Low Rise, 31.8mm OD, 635mm Wide
Stem	Thomson X4, 31.8mm Bar Clamp, 90mm S & M, 100mm L
Grips	Whyte Lock-on's

19-RACE Ł1999
Frame only Ł599

Whyte 19 Race

Sizes	S, M. L
Frame	AN6 T6 Aluminium, Custom Drawn Multi Butted and High Modulus Carbon Seat Stays with Adjustable Bolt-on Dropouts
Fork	Fox F100RL, 100mm, White
Shifters	Shimano XT SL-M770
Brake Levers	Shimano XT
Crankset	Shimano XT FC-M770, 44/32/22 with Hollowtech II Arms and Carbon Middle Chain Ring
Chain	Shimano HG-73
Front Mech	Shimano XT FD-M770
Rear Mech	Shimano XT RD-M770
Cassette	Shimano CS-M770 11-34
Rear Hub	Shimano XT Wheelset WH-M775 with Centre Lock Disk Rotors
Front Hub	Shimano XT Wheelset WH-M775 with Centre Lock Disk Rotors
Bottom Bracket	Shimano XT Big Pipe Billet Integrated with Crankset
Brakes	Shimano XT 160mm Rotors
Rims	Shimano XT Wheelset WH-M775
Spokes	Shimano XT Wheelset WH-M775
Tyres	Continental Moutain King 26 X 2.2" with Kevlar Bead
Headset	FSA Orbit MX, Sealed Cartridge Bearings
Seatpost	Thomson, 30.9mm x 410mm, 7 degree layback
Saddle	Fi'zi:k Gobi MX with Mag Rails
Bar	Easton Monkeylite SL Low Rise, 31.8mm OD, 635mm Wide
Stem	Easton EA70 31.8mm Bar Clamp, 90mm S & M, 100mm L
Grips	Whyte Lock-on's

19-TRAIL Ł1999

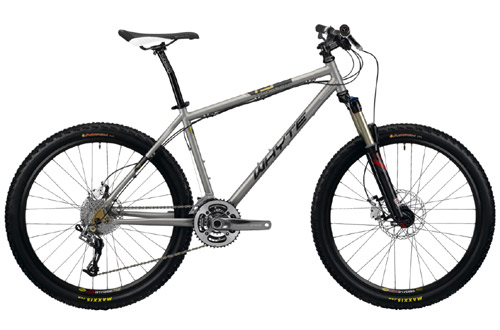

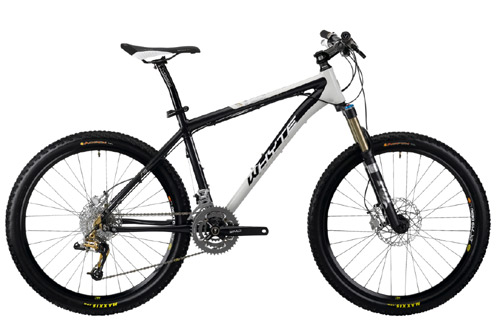

Whyte 19 Trail

Sizes	S, M. L
Frame	AN6 Hyrdro Formed T6 Aluminium, Custom Drawn and Multi Butted with Adjustable Modular Dropouts
Fork	RockShox Revelation 426 130mm, Motion Control Damping, Adjustable Rebound
Shifters	SRAM X-9
Brake Levers	Hope Mono Mini
Crankset	Shimano XT FC-M770, 44/32/22 with Hollowtech II Arms and Carbon Middle Chain Ring
Chain	SRAM PC-971
Front Mech	SRAM X-9
Rear Mech	SRAM X-0 Long Cage
Cassette	SRAM PG-990 11-34
Rear Hub	Hope II Pro Disc Hub 32 Hole with Shimano XT QR
Front Hub	Hope II Pro Disc Hub 32 Hole with Shimano XT QR
Bottom Bracket	Shimano XT Big Pipe Billet Integrated with Crankset
Brakes	Hope Mono Mini 183mm front and 160mm rear
Rims	Mavic XM-719, 32 Hole, Black
Spokes	DT Competition Butted 1.8-1.6-1.8mm, Black Stainless with Brass Nipples
Tyres	Panaracer Cinder 26 X 2.25" with Kevlar Bead
Headset	FSA Orbit MX, Sealed Cartridge Bearings
Seatpost	Thomson, 30.9mm x 410mm, 7 degrees layback
Saddle	Fi'zi:k Gobi with Mag Rails
Bar	Easton Monkeylite XC Low Rise, 31.8mm OD
Stem	Easton EA50 31.8mm Bar Clamp, 90mm S & M, 100mm L
Grips	Whyte Lock-on's

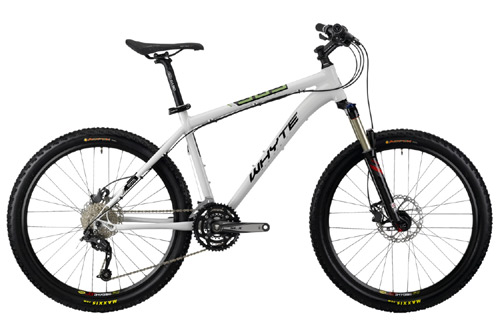

905 Ł1399

Whyte 905

Sizes	S, M. L
Frame	6061 Hydro Formed T6 Aluminium, Custom Drawn and Multi Butted
Fork	RockShox Recon 351, 130mm Travel, Motion Control Damping with TurnKey Lock-out
Shifters	SRAM X-7
Brake Levers	AVID Juicy 7
Crankset	Shimano LX FC-M582, 44/32/22 with Hollowtech II Arms
Chain	SRAM PC-971
Front Mech	SRAM X-9
Rear Mech	SRAM X-9 Long Cage
Cassette	SRAM PG-980 Cassette 11-34
Rear Hub	Hope II Pro Disc Hub 32 Hole with Shimano XT QR
Front Hub	Hope II Pro Disc Hub 32 Hole with Shimano XT QR
Bottom Bracket	Shimano Big Pipe Billet Integrated with Crankset
Brakes	AVID Juicy 7 180/160mm Rotors
Rims	Mavic XM 317 32 Hole
Spokes	DT Competition Butted 1.8-1.6-1.8mm, Black Stainless with Brass Nipples
Tyres	Panaracer Cinder 26 X 2.25" with Kevlar Bead
Headset	FSA Orbit MX, Steel Sealed Cartridge Bearings
Seatpost	Easton EA50, 30.9mm x 350mm
Saddle	Fi'zi:k Gobi XM Mag Rails
Bar	Easton MonkeyBar XC Mid Rise, 31.8mm OD
Stem	Easton EA50 31.8mm Bar Clamp, 90mm S & M, 100mm L
Grips	Whyte Lock-on's

Marin 2009

RACE-LIGHT HARDTAIL

Two super-light, state-of-the-art bikes to head Marin's excellent hardtail lineup for 2009.

TEAM CXR Ł1849

Marin Team CXR

Sizes	17" 19" 20.5"
Frame	Full CXR 7 Carbon Monocoque, Oversized Downtube, Disc Specific
Fork	RockShox Reba SL with Poplock, 100mm with Dual Air Preload Adjustment, Rebound Adjustment and Motion Control, Lockout
Headset	Intergrated 1/8"
Rear Hub	Shimano SLX, Centerlock 32 Hole Disc
Front Hub	Shimano SLX, 32 Hole Disc
Spokes	DT 15 Gauge Black Stainless
Rims	Mavic XM-317, 32 Hole Disc
Tyres	Maxxis Ignitor, 26" X 2.1" Kevlar Bead
Shift Levers	Shimano SLX, 2 Way Release, 9 Speed
Front Derailleur	Shimano SLX
Rear Derailleur	Shimano Shadow XT
Cassette	Shimano SLX, 11-34, 9 Speed
Chain	Shimano HG73
Crankset	Shimano SLX, 44/32/22, HollowTech II Arms
Bottom Bracket	Shimano with HollowTech II Arms Big Pipe Billet Integrated with Crankset
Seatpost	FSA SL-280, 6061, 30.9mm x 350mm
Saddle	WTB Devo Team
Bar	Easton EA50 MonkeyBar, OS-31.8mm, Low Rise
Stem	FSA OS150LX Threadless, with Alloy Face Plate and 31.8mm Bar Clamp
Grips	Marin Locking with Drop Guard End Plugs
Brakes Front	Shimano SLX Hydraulic Disc
Brakes Rear	Shimano SLX Hydraulic Disc
Brake Levers	Shimano SLX Hydraulic Disc
Pedals	Shimano M520 Clipless

INDIAN FIRE TRAIL Ł1599

Marin Indian Fire Trail

Sizes	17" 19" 20.5" 22"
Frame	G7 Scandium enriched Aluminum, Triple Butted Hydro-Edge Top and Down Tubes with Double Butted Seat and Chain Stays, Disc Speciifc
Fork	Fox 32 F100RL, 100mm with Rebound Adjustment, Lockout and Air Spring Preload
Headset	Orbit MX, 1 1/8" Threadless, Alloy
Rear Hub	Mavic Cross Ride Disc, 24 Hole
Front Hub	Mavic Cross Ride Disc, 24 Hole
Spokes	Mavic Cross Ride Disc Wheelset
Rims	Mavic Cross Ride Disc, 24 Hole Front, 24 Hole Rear, Wheelset
Tyres	WTB Prowler MX Folding, 26" x 2.1" (49/52)
Shift Levers	Shimano SLX, 2 Way Release, 9 Speed
Front Derailleur	Shimano SLX
Rear Derailleur	Shimano Shadow XT
Cassette	SRAM PG-980, Power Glide II, 11-34, 9 Speed
Chain	Shimano HG73
Crankset	Shimano XT, 44/32/22 with HollowTech II Arms and Composite Middle Chain Ring
Bottom Bracket	Shimano with HollowTech II Arms Big Pipe Billet Integrated with Crankset
Seatpost	FSA SL-K, Carbon, 27.2mm x 350mm
Saddle	WTB Silverado Team with Nicro Rails
Bar	Double Butted 6061 Alloy, OS-31.8mm, 25.4mm Rise
Stem	FSA OS115 Threadless with Alloy Face Plate and 31.8mm Bar Clamp
Grips	Marin Locking with Drop Guard End Plugs
Brakes Front	Hayes Stroker Carbon Hydraulic Disc with V6 Rotor
Brakes Rear	Hayes Stroker Carbon Hydraulic Disc with V6 Rotor
Brake Levers	Hayes Hydraulic Disc
Pedals	Shimano M520 Clipless

HYDRO-LIGHT HARDTAIL

A range of 5 models, from Ł499 to Ł1125, all with the excellent Marin frame pedigree. Strong, light and well equipped bikes offering very good value for money.

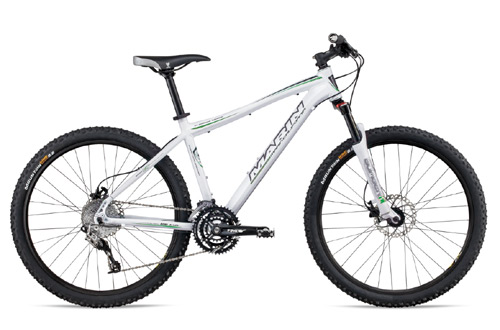

ELDRIDE GRADE Ł1125

Marin Eldridge Grade

Sizes	15" 17" 19" 20.5" 22"
Frame	6061 Aluminum, Triple Butted Hydro-Edge Top and Down Tubes, Double Butted 4-Side Seat and Chain Stays, Disc Specific
Fork	Fox 32 F100R, 100mm with Rebound Adjustment and Air Spring Preload
Headset	TH-857, 1 1/8", Threadless, Alloy
Rear Hub	Shimano Deore, 32 Hole Disc
Front Hub	Shimano Deore, 32 Hole Disc
Spokes	DT 15 Gauge Black Stainless
Rims	Mavic XM-117, 32 Hole Disc
Tyres	WTB Prowler MX Folding Comp, 26" x 2.1" (49/52)
Shift Levers	Shimano SLX, 2 Way Release, 9 Speed
Front Derailleur	Shimano SLX
Rear Derailleur	Shimano Shadow XT
Cassette	Shimano, 11-34, 9 Speed
Chain	Shimano HG53
Crankset	Shimano Hollowtech II, 44/32/22
Bottom Bracket	Shimano with HollowTech II Big Pipe Billet Integrated with Crankset
Seatpost	Comp Alloy Micro Adjust, 30.9mm x 400mm
Saddle	WTB Rocket V Comp with Love Channel and Comfort Zone
Bar	Double Butted 6061 Alloy, OS-31.8mm, 25.4mm Rise
Stem	FSA OS150LX Threadless, with Alloy Face Plate and 31.8mm Bar Clamp
Grips	Super Diamond
Brakes Front	Hayes Stroker Carbon Hydraulic Disc with V6 Rotor
Brakes Rear	Hayes Stroker Carbon Hydraulic Disc with V6 Rotor
Brake Levers	Hayes Hydraulic Disc
Pedals	Ritchey Logic Mountain V4 Clipless

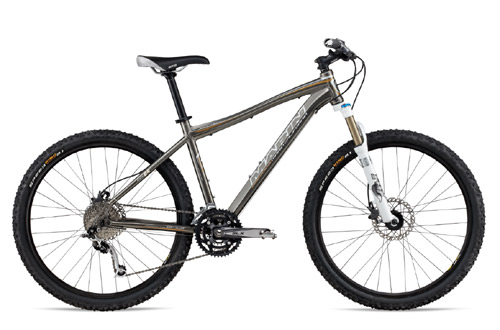

NAIL TRAIL Ł899

Marin Nail Trail

Sizes	15" 17" 19" 20.5" 22"
Frame	6061 Aluminum, Triple Butted Hydro-Edge Top and Down Tubes, Double Butted E4 Anti-Flex Seat and Chain Stays
Fork	Marzocchi 33 TST2, 100mm, Preload, Compression and Rebound Adjustment, with Lockout
Headset	TH-888, 1 1/8", Threadless
Rear Hub	Shimano Deore, 32 Hole Disc
Front Hub	Shimano Deore, 32 Hole Disc
Spokes	WTB 15 Gauge Black Stainless
Rims	Mavic XM-117, 32 Hole Disc
Tyres	WTB Prowler MX Folding, 26" x 2.1" (49/52)
Shift Levers	Shimano Deore, 2 Way Release, 9 Speed
Front Derailleur	Shimano Deore
Rear Derailleur	Shimano Shadow XT
Cassette	Shimano, 11-34, 9 Speed
Chain	Shimano HG53
Crankset	Shimano HollowTech II Arms, 44/32/22
Bottom Bracket	Shimano with HollowTech II Arms Big Pipe Billet Integrated with Crankset
Seatpost	Comp Alloy Micro Adjust, 30.9mm x 400mm
Saddle	WTB Speed V Comp with Love Channel and Comfort Zone
Bar	Double Butted 6061 Alloy, OS-31.8mm, 25.4mm Rise
Stem	FSA OS150LX Threadless, with Alloy Face Plate and 31.8mm Bar Clamp
Grips	Super Diamond
Brakes Front	Hayes Stroker Ryde Hydraulic Disc with V6 Rotor
Brakes Rear	Hayes Stroker Ryde Hydraulic Disc with V6 Rotor
Brake Levers	Hayes Hydraulic Disc
Pedals	Alloy Double Sided Mountain

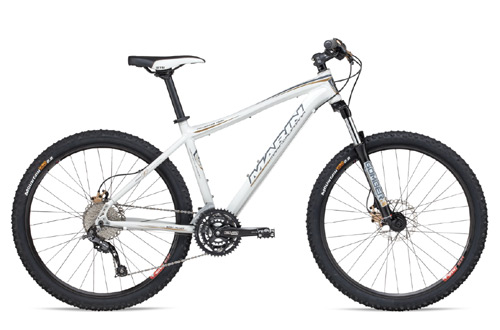

PALISADES TRAIL Ł749

Marin Palisades Trail

Sizes	15" 17" 19" 20.5" 22"
Frame	6061 Aluminum, Triple Butted Hydro-Edge Top and Down Tubes, Double Butted 4-Side Seat and Chain Stays, Disc Specific
Fork	Marzocchi 22LO, 100mm with Preload Adjustment, Lockout and fixed Rebound
Headset	TH-888, 1 1/8", Threadless
Rear Hub	Shimano Deore, 32 Hole Disc
Front Hub	Shimano Deore, 32 Hole Disc
Spokes	WTB 15 Gauge Black Stainless
Rims	WTB SX24, Double Wall, 32 Hole Disc
Tyres	WTB Prowler MX Comp, 26" x 2.1" (49/52)
Shift Levers	Shimano Deore, 2 Way Release, 9 Speed
Front Derailleur	Shimano Deore
Rear Derailleur	Shimano Shadow SLX
Cassette	Shimano, 11-34, 9 Speed
Chain	Shimano HG53
Crankset	TruVativ Five D 3.1, 44/32/22 with Alloy Outer Chainring
Bottom Bracket	TruVativ with Sealed Cartridge
Seatpost	Alloy Micro Adjust, 30.9mm x 400mm
Saddle	WTB Speed V ATB with Love Channel and Comfort Zone
Bar	Double Butted 6061 Alloy, OS-31.8mm, 25.4mm Rise
Stem	FSA OS190 Threadless, with Alloy Face Plate and 31.8mm Bar Clamp
Grips	Marin Dual Density
Brakes Front	Avid Juicy 3 Hydraulic Disc
Brakes Rear	Avid Juicy 3 Hydraulic Disc
Brake Levers	Avid Hydraulic Disc
Pedals	Alloy Double Sided Mountain

HAWK HILL SE Ł675

Marin Hawk Hill SE

Sizes	15" 17" 19" 20.5" 22"
Frame	6061 Aluminum, Double Butted Hydro-Edge Top and Down Tubes, E4 Anti-Flex Seat and Chain Stays
Fork	RockShox Dart 2, 100mm with Preload Adjustment and TurnKey Lockout
Headset	TH-888, 1 1/8", Threadless
Rear Hub	Alloy Double Sealed, 32 Hole Disc with Locking QR
Front Hub	Alloy Double Sealed, 32 Hole Disc with Locking QR
Spokes	WTB 15 Gauge Black Stainless
Rims	WTB DX23, Double Wall, 32 Hole Disc
Tyres	WTB Prowler MX Comp, 26" x 2.1" (49/52)
Shift Levers	SRAM X-5, 9 Speed Trigger
Front Derailleur	SRAM X-5
Rear Derailleur	SRAM X-5
Cassette	SRAM PG-950, Power Glide II, 11-34, 9 Speed
Chain	Shimano HG53
Crankset	FSA Dynadrive, 44/32/22
Bottom Bracket	Sealed Cartridge
Seatpost	Alloy Micro Adjust, 30.9mm x 400mm
Saddle	WTB Speed V ATB with Love Channel and Comfort Zone
Bar	Double Butted 6061 Alloy, OS-31.8mm, 25.4mm Rise
Stem	Marin OS Alloy Threadless, with 31.8mm Bar Clamp
Grips	Marin Dual Density
Brakes Front	Avid Juicy 3 Hydraulic Disc with 6" Rotor
Brakes Rear	Avid Juicy 3 Hydraulic Disc with 6" Rotor
Brake Levers	Avid Hydraulic Disc
Pedals	Composite with Alloy Cage

BOBCAT TRAIL Ł499

Marin Bobcat Trail

Sizes	15" 17" 19" 20.5" 22"
Frame	6061 Aluminum, Double Butted Hydro-Edge Top and Down Tubes, E4 Anti-Flex Seat and Chain Stays
Fork	RockShox Dart 1, 100mm with Preload Adjustment
Headset	Ritchey LB, 1 1/8", Threadless
Rear Hub	Alloy Double Sealed, 32 Hole Disc with QR
Front Hub	Alloy Double Sealed, 32 Hole Disc with QR
Spokes	WTB 15 Gauge Stainless
Rims	WTB DX23, Double Wall, 32 Hole Disc
Tyres	WTB Prowler MX Comp, 26" x 2.1" (49/52)
Shift Levers	Shimano Acera Rapid Fire Plus
Front Derailleur	Shimano Altus FD-M310
Rear Derailleur	Shimano Alivio
Cassette	Shimano HG 40, 11-32, 8 Speed
Chain	HG40
Crankset	FSA Dynadrive, 42T/32/22
Bottom Bracket	Sealed Cartridge
Seatpost	Alloy Micro Adjust, 30.9mm x 400mm
Saddle	WTB Speed V Sport LE with Love Channel and Comfort Zone
Bar	Double Butted 6061 Alloy, OS-31.8mm, 25.4mm Rise
Stem	Marin OS Alloy Threadless, with 31.8mm Bar Clamp
Grips	Marin Dual Density
Brakes Front	Tektro Auriga Comp Hydraulic Disc with 6" Rotor
Brakes Rear	Tektro Auriga Comp Hydraulic Disc with 6" Rotor
Brake Levers	Tektro Auriga Comp Hydraulic Disc
Pedals	Composite

ALLOY HARDTAIL

Two good-value hardtails featuring traditional rim-brakes rather than discs.

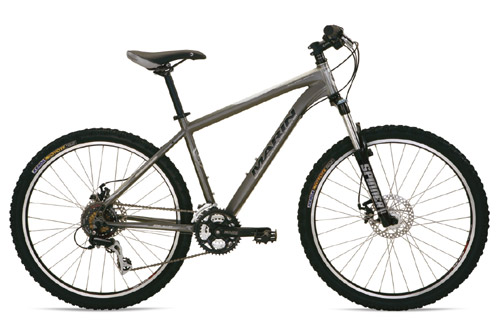

BOLINAS RIDGE Ł399

Marin Bolinas Ridge

Sizes	15" 17" 19" 20.5" 22"
Frame	6061 Double Butted Aluminum with Edge 3 OS Top and Down Tubes
Fork	Spinner Grind OS 1HL, 100mm with Oversize 28.6mm Legs, Preload Adjustment and Lockout
Headset	Ritchey LB, 1 1/8", Threadless
Rear Hub	Alloy Double Sealed, 32 Hole Disc with QR
Front Hub	Alloy Double Sealed, 32 Hole Disc with QR
Spokes	WTB 15 Gauge Stainless
Rims	Alex CA-20, Double Wall, 32 Hole with CNC Side Walls
Tyres	WTB Prowler MX Comp, 26" x 2.1" (49/52)
Shift Levers	Shimano Acera Rapid Fire Plus
Front Derailleur	Shimano Altus FD-M310
Rear Derailleur	Shimano Acera
Cassette	Shimano HG 40, 11-32, 8 Speed
Chain	HG40
Crankset	FSA C-Drive, 42T/32/22
Bottom Bracket	Sealed Cartridge
Seatpost	Alloy Micro Adjust, 27.2mm x 350mm
Saddle	WTB Speed V Sport LE with Love Channel and Comfort Zone
Bar	Double Butted 6061 Alloy, OS-31.8mm, 25.4mm Rise
Stem	Marin OS Alloy Threadless, with 31.8mm Bar Clamp
Grips	Marin Extra Dual Density
Brakes Front	Forged Alloy Linear Pull
Brakes Rear	Forged Alloy Linear Pull
Brake Levers	Forged Alloy 3 Finger
Pedals	Composite

PIONEER TRAIL Ł325

Marin Pioneer Trail

Sizes	13" 15" 17" 19" 20.5" 22"
Frame	6061 Double Butted Aluminum with Edge 3 OS Top and Down Tubes
Fork	Spinner Grind OS 2, 100mm with Oversize 28.6mm Legs and Preload Adjustment
Headset	Ritchey LB, 1 1/8", Threadless
Rear Hub	Alloy Double Sealed, 32 Hole Disc with QR
Front Hub	Alloy Double Sealed, 32 Hole Disc with QR
Spokes	WTB 15 Gauge Stainless
Rims	Alex AP17, 32 Hole
Tyres	Kenda Koyote, 26" x 1.95", Knobby
Shift Levers	Shimano EF50 EZ-FIRE Plus, 8 Speed
Front Derailleur	Shimano Altus FD-M310
Rear Derailleur	Shimano Altus
Cassette	Shimano HG30, 11-30, 8 Speed
Chain	Shimano HG40
Crankset	TruVativ X-Flow 3.0, 42/32/22
Bottom Bracket	TruVativ with Sealed Cartridge
Seatpost	Alloy Micro Adjust, 27.2mm x 350mm
Saddle	Comfort Sport
Bar	Double Butted 6061 Alloy, OS-31.8mm, 25.4mm Rise
Stem	Marin OS Alloy Threadless, with 31.8mm Bar Clamp
Grips	Marin Extra Dual Density
Brakes Front	Forged Alloy Linear Pull
Brakes Rear	Forged Alloy Linear Pull
Brake Levers	Shimano with Integrated Shifters
Pedals	Composite

TRAIL HARDTAIL

A range of four heavy-duty hardtails from Marin. They all feature specially reinforced frames, with a lower top tube than found on traditional cross-country bikes. The Trail Hardtail family is aimed at riders who typically look for tough terrain rather than doing long cross-country rides.

ROCKY RIDGE Ł1125

Marin Rocky Ridge

Sizes	Small, Medium, Large
Frame	6061 Aluminum, Double Butted Edge XL Top Tube and Hydro Edge Down Tube with Tri-Burner XXL Seat and Chain Stays, Disc Specific
Fork	Fox 32 Vanilla R, 140mm with 15QR thru axle system
Headset	TH-857, 1 1/8", Threadless, Alloy
Rear Hub	Shimano Deore, 32 Hole Disc
Front Hub	Alloy Cartridge Sealed, 32 Hole Disc, with 15mm Through Axle
Spokes	DT 15 Gauge Black Stainless
Rims	WTB LaserDisc Trail, Double Wall, 32 Hole Disc
Tyres	WTB Prowler MX Folding Comp 2.3, 26" x 2.3"
Shift Levers	Shimano Deore, 2 Way Release, 9 Speed
Front Derailleur	Shimano Deore
Rear Derailleur	Shimano Shadow XT
Cassette	Shimano, 11-34, 9 Speed
Chain	Shimano HG53
Crankset	TruVativ Firex 3.1, 44/32/22 with Alloy Outer Chainring and Giga X Pipe External BB System
Bottom Bracket	TruVativ with Giga X Pipe Exterior System Integrated with Crankset
Seatpost	Pro Alloy Micro Adjust, 30.9mm x 400mm
Saddle	WTB Pure V Comp with Love Channel and Comfort Zone
Bar	A-XC Double Butted 6061 Alloy, OS-31.8mm, 42mm Rise
Stem	Gap OS Threadless with Alloy Face Plate, with 31.8mm Bar Clamp
Grips	Marin Locking with Drop Guard End Plugs
Brakes Front	Hayes Stroker TRAIL Hydraulic Disc with V7 Rotors
Brakes Rear	Hayes Stroker TRAIL Hydraulic Disc with V6 Rotors
Brake Levers	Hayes Hydraulic Disc
Pedals	Shimano M424 Clipless

B-17 Ł799

Marin B-17

Sizes	Small, Medium, Large
Frame	6061 Aluminum, Double Butted Edge XL Top Tube and Hydro Edge Down Tube with Tri-Burner XXL Seat and Chain Stays, Disc Specific
Fork	Rock Shox TORA Trail 302 U-Turn 85-130mm with External Rebound Adjustment and Turnkey Lockout
Headset	TH-888, 1 1/8", Threadless
Rear Hub	Shimano Deore, 32 Hole Disc
Front Hub	Shimano Deore, 32 Hole Disc
Spokes	DT 14 Gauge Black Stainless
Rims	WTB SpeedDisc All Mountain, Double Wall, 32 Hole Disc
Tyres	WTB Prowler MX Comp 2.3, 26" x 2.3"
Shift Levers	SRAM X-5, 9 Speed Trigger
Front Derailleur	SRAM X-5
Rear Derailleur	SRAM X-7
Cassette	SRAM PG-950, Power Glide II, 11-34, 9 Speed
Chain	Shimano HG53
Crankset	TruVativ Blaze 3.0, 42/32/22, with Power Spline BB
Bottom Bracket	TruVativ with Sealed Cartridge and Power Spline
Seatpost	Pro Alloy Micro Adjust, 30.9mm x 400mm
Saddle	WTB Pure V Sport with Love Channel and Comfort Zone
Bar	A-XC Double Butted 6061 Alloy, OS-31.8mm, 42mm Rise
Stem	Forged Alloy Threadless, Trail, with 31.8mm Bar Clamp
Grips	Marin Locking with Drop Guard End Plugs
Brakes Front	Avid Juicy 3 Hydraulic Disc
Brakes Rear	Avid Juicy 3 Hydraulic Disc
Brake Levers	Avid Hydraulic Disc
Pedals	BMX Platform

NORTHSIDE TRAIL Ł599

Marin Northside Trail

Sizes	Small, Medium, Large
Frame	6061 Aluminum, Double Butted Edge XL Top and Down Tubes with Tri-Burner XL Seat and XXL Chain Stays, Disc Compatible
Fork	SR Sun Tour Raidan DA, 120mm of Travel, with Preload Adjustment,
Headset	TH-888, 1 1/8", Threadless
Rear Hub	Alloy Double Sealed, 32 Hole Disc with QR
Front Hub	Alloy Double Sealed, 32 Hole Disc with QR
Spokes	WTB 14 Gauge Stainless
Rims	WTB SpeedDisc All Mountain, Double Wall, 32 Hole Disc
Tyres	Kenda Kinetics, 26" x 2.35", Knobby
Shift Levers	SRAM X-4, 8 Speed Trigger
Front Derailleur	Shimano Alivio
Rear Derailleur	SRAM X-5
Cassette	SRAM PG-830, Power Glide II, 11-32, 8 Speed
Chain	HG40
Crankset	TruVativ Five D 3.0, 42/32/22
Bottom Bracket	TruVativ with Sealed Cartridge
Seatpost	Pro Alloy Micro Adjust, 30.9mm x 400mm
Saddle	Marin AXC
Bar	Double Butted 6061 Alloy, OS-31.8mm, 25.4mm Rise
Stem	Forged Alloy Threadless, Trail, with 31.8mm Bar Clamp
Grips	WTB Weirwolf with Drop Guard End Plugs
Brakes Front	Tektro Auriga Comp Hydraulic Disc with 7" Rotor
Brakes Rear	Tektro Auriga Comp Hydraulic Disc with 6" Rotor
Brake Levers	Tektro Auriga Comp Hydraulic Disc
Pedals	Platform

MADRONE TRAIL Ł499

Marin Madrone Trail

Sizes	Small, Medium, Large
Frame	6061 Aluminum, Double Butted Edge XL Top and Down Tubes with Tri-Burner XL Seat and XXL Chain Stays, Disc Compatible
Fork	Spinner Edge AL1, 120mm of Travel, with Preload Adjustment
Headset	Ritchey LB, 1 1/8", Threadless
Rear Hub	Alloy Double Sealed, 32 Hole Disc with QR
Front Hub	Alloy Double Sealed, 32 Hole Disc with QR
Spokes	WTB 14 Gauge Stainless
Rims	Alex TD-20, Double Wall, 32 Hole Disc
Tyres	Kenda Kinetics, 26" x 2.35", Knobby
Shift Levers	SRAM X-4, 8 Speed Trigger
Front Derailleur	Shimano Alivio
Rear Derailleur	SRAM X-5
Cassette	8 Speed 11-32
Chain	HG40
Crankset	TruVativ X-Flow 3.0, 42/34/24
Bottom Bracket	TruVativ with Sealed Cartridge
Seatpost	Pro Alloy Micro Adjust, 30.9mm x 400mm
Saddle	Marin AXC
Bar	Double Butted 6061 Alloy, OS-31.8mm, 25.4mm Rise
Stem	Forged Alloy Threadless, Trail, with 31.8mm Bar Clamp
Grips	WTB Weirwolf with Drop Guard End Plugs
Brakes Front	Hayes MX-4 Mechanical Disc with 7" Rotor
Brakes Rear	Hayes MX-4 Mechanical Disc with 6" Rotor
Brake Levers	Forged Alloy 3 Finger
Pedals	Platform

MOUNTAIN 29er HARDTAIL

A brand new category from Marin for 2009, two bikes featuring 29" rather than 26" wheels. This idea has been growing in popularity in the States for some years and has started to appear in the UK more recently. The big wheels cope particularly well on very rough terrain, though they are heavier and less agile than the traditional 26" wheel.

PINE MOUNTAIN 29er Ł1299

Marin Pine Mountain 29er

Sizes	17", 19", 20.5", 22"
Frame	4130 Cromoly, Triple Butted Edge Shaped Top and Down Tubes with Eccentric Bottom Bracket, and Convertible Dropout
Fork	RockShox Reba, 100mm with Dual Air Preload Adjustment, Rebound Adjustment and Motion Control, Lockout
Headset	TH-875, 1/8" Threadless, Alloy
Rear Hub	WTB LaserDisc Lite Single Duty, Single Speed, 32 Hole Disc
Front Hub	WTB LaserDisc Lite, 32 Hole Disc
Spokes	WTB 15 Gauge Black Stainless
Rims	WTB Laserdisc Trail 29er, Double Wall, 32 Hole Disc
Tyres	WTB Prowler SL Folding, 29" x 2.1" (49/52)
Shift Levers	N/A
Front Derailleur	N/A
Rear Derailleur	N/A
Cassette	20T Cog
Chain	HG40
Crankset	TruVativ Stylo 1.1, with an Alloy Chain Guard and a 32T Chainring, and Giga X Pipe Exterior BB System
Bottom Bracket	TruVativ with Giga X Pipe Exterior System Integrated with Crankset
Seatpost	FSA SL-K, Carbon, 27.2mm x 350mm
Saddle	WTB Laser V Comp with Love Channel, Comfort Zone and Cromoly Rails
Bar	Double Butted 6061 Alloy, OS-31.8mm, 25.4mm Rise
Stem	FSA OS150LX Threadless, with Alloy Face Plate and 31.8mm Bar Clamp
Grips	WTB Moto Grip
Brakes Front	Avid Juicy 3 Hydraulic Disc with 6" Rotor
Brakes Rear	Avid Juicy 3 Hydraulic Disc with 6" Rotor
Brake Levers	Avid Hydraulic Disc
Pedals	Shimano M520 Clipless

NAIL TRAIL 29er Ł1299

Marin Nail Trail 29er

Sizes	17", 19", 20.5", 22"
Frame	6061 Aluminum 29er, Triple Butted Hydro-Edge Top and Down Tubes, Double Butted E4 Anti-Flex Seat and Chain Stays
Fork	Fox 32 F29 RL, 100mm with Rebound Adjustment, Lockout, and Air Spring Preload
Headset	TH-875, 1/8" Threadless, Alloy
Rear Hub	Shimano Deore, 32 Hole Disc
Front Hub	Shimano Deore, 32 Hole Disc
Spokes	WTB 15 Gauge Black Stainless
Rims	WTB Laserdisc Trail 29er, Double Wall, 32 Hole Disc
Tyres	WTB Prowler SL Folding, 29" x 2.1" (49/52)
Shift Levers	Shimano SLX, 2 Way Release, 9 Speed
Front Derailleur	Shimano SLX
Rear Derailleur	Shimano Shadow XT
Cassette	Shimano, 11-34, 9 Speed
Chain	Shimano HG73
Crankset	Shimano HollowTech II Arms, 44/32/22
Bottom Bracket	Shimano with HollowTech II Arms Big Pipe Billet Integrated with Crankset
Seatpost	FSA SL-280, 6061, 30.9mm x 350mm
Saddle	WTB Laser V Comp with Love Channel, Comfort Zone and Cromoly Rails
Bar	Double Butted 6061 Alloy, OS-31.8mm, 25.4mm Rise
Stem	FSA OS150LX Threadless, with Alloy Face Plate and 31.8mm Bar Clamp
Grips	WTB Moto Grip
Brakes Front	Shimano SLX Hydraulic Disc
Brakes Rear	Shimano SLX Hydraulic Disc
Brake Levers	Shimano SLX Hydraulic Disc
Pedals	Shimano M520 Clipless

WOMEN'S BIKES

Marin make an excellent range of 3 lightweight women's hardtails which have men's style frames, but with shorter top tubes, narrower handlebars and softer suspension forks, to better suit the female body...

JUNIPER TRAIL Ł775

Marin Juniper Trail

Sizes	13", 15", 17", 19"
Frame	6061 Aluminum with Women’s Fit Geometry, Triple Butted Hydro-Edge Top and Down Tubes, Double Butted E4 Anti-Flex Seat and Chain Stays
Fork	RockShox Dart 3, 100mm with Preload Adjustment, Rebound Adjustment and TurnKey Lockout
Headset	TH-888, 1 1/8", Threadless
Rear Hub	Shimano, 32 Hole Disc
Front Hub	Shimano, 32 Hole Disc
Spokes	WTB 15 Gauge Black Stainless
Rims	Mavic XM-117, 32 Hole Disc
Tyres	WTB Prowler MX Comp, 26" x 2.1" (49/52)
Shift Levers	Shimano Deore, 2 Way Release, 9 Speed
Front Derailleur	Shimano Deore
Rear Derailleur	Shimano Shadow SLX
Cassette	Shimano, 11-34, 9 Speed
Chain	Shimano HG53
Crankset	TruVativ Five D 3.1, 44/32/22 with Alloy Outer Chainring
Bottom Bracket	TruVativ with Sealed Cartridge
Seatpost	FSA SL-280, 6061, 30.9mm x 350mm
Saddle	WTB Speed She Comp with Love Channel and Comfort Zone
Bar	Women’s Custom Taper Double Butted Alloy, 31.8mm Center Tapering to 19.1mm Control Section, with Shift and Brake Lever Adjustment Shims with +/-3mm of Adjustment, with 25.4mm Rise
Stem	FSA OS190 Threadless, with Alloy Face Plate and 31.8mm Bar Clamp
Grips	Marin Custom Dual Density Women’s Grips for 19.1mm Bars
Brakes Front	Avid Juicy 3 Hydraulic Disc with 6" Rotor
Brakes Rear	Avid Juicy 3 Hydraulic Disc with 6" Rotor
Brake Levers	Avid Hydraulic Disc
Pedals	Alloy Double Sided Mountain

BEAR VALLEY Ł525

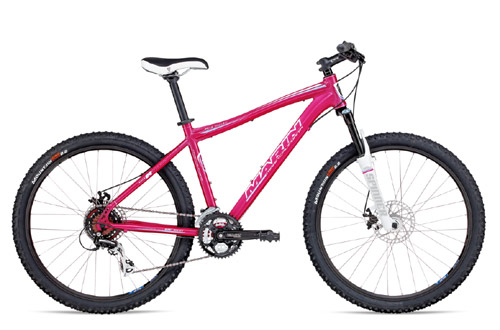

Marin Bear Valley

Sizes	13", 15", 17", 19"
Frame	6061 Aluminum with Women's Fit Geometry, with Double Butted Hydro-Edge Top and Down Tubes, E4 Anti-Flex Seat and Chain Stays
Fork	Spinner Eagle, 80mm, Tuned for Women, with Preload Adjustment and Lockout
Headset	TH-888, 1 1/8", Threadless
Rear Hub	Alloy Double Sealed, 32 Hole Disc with QR
Front Hub	Alloy Double Sealed, 32 Hole Disc with QR
Spokes	WTB 15 Gauge Stainless
Rims	WTB DX23, Double Wall, 32 Hole Disc
Tyres	WTB Prowler MX Comp, 26" x 2.1" (49/52)
Shift Levers	Shimano Acera Rapid Fire Plus
Front Derailleur	Shimano Altus FD-M310
Rear Derailleur	Shimano Acera
Cassette	Shimano HG30, 11-34, 8 Speed
Chain	HG40
Crankset	TruVativ X-Flow 3.0, 42/32/22
Bottom Bracket	TruVativ with Sealed Cartridge
Seatpost	Alloy Micro Adjust, 30.9mm x 400mm
Saddle	WTB Speed She Sport with Love Channel and Comfort Zone
Bar	Women's Custom Taper Double Butted Alloy, 31.8mm Center Tapering to 19.1mm Control Section, with Shift and Brake Lever Adjustment Shims with +/-3mm of Adjustment, with 25.4mm Rise
Stem	Marin OS Alloy Threadless, with 31.8mm Bar Clamp
Grips	Marin Custom Dual Density Women’s Grips for 19.1mm Bars
Brakes Front	Hayes MX-4 Mechanical Disc with 6" Rotor
Brakes Rear	Hayes MX-4 Mechanical Disc with 6" Rotor
Brake Levers	Forged Alloy 3 Finger
Pedals	Composite

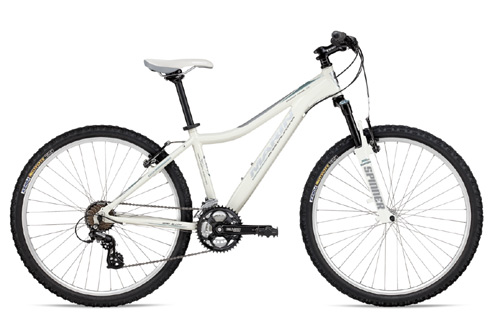

COAST TRAIL Ł399

Marin Coast Trail

Sizes	13", 15", 17", 19"
Frame	6061 Triple Butted Aluminum with Women’s Fit Geometry, Edge 2 Top Tube and Triple Butted Down Tube, E4 Anti-Flex Seat Stay
Fork	Spinner Grind OS 1HL, 80mm with Oversize 28.6mm Legs, Preload Adjustment and Lockout
Headset	Ritchey LB, 1 1/8", Threadless
Rear Hub	Alloy Double Sealed, 32 Hole with QR
Front Hub	Alloy Double Sealed, 32 Hole with QR
Spokes	WTB 15 Gauge Stainless
Rims	Alex AP17, 32 Hole
Tyres	Kenda Koyote, 26" x 1.95", Knobby
Shift Levers	Shimano EF50 EZ-FIRE Plus, 8 Speed
Front Derailleur	Shimano Altus FD-M310
Rear Derailleur	Shimano Altus
Cassette	Shimano HG30, 11-30, 8 Speed
Chain	HG40
Crankset	TruVativ X-Flow 3.0, 42/32/22
Bottom Bracket	TruVativ with Sealed Cartridge
Seatpost	Alloy Micro Adjust, 27.2mm x 350mm
Saddle	WTB Leisure She Comp
Bar	Women's Custom Taper Double Butted Alloy, 31.8mm Center Tapering to 19.1mm Control Section, with Shift and Brake Lever Adjustment Shims with +/-3mm of Adjustment, with 25.4mm Rise
Stem	Marin OS Alloy Threadless, with 31.8mm Bar Clamp
Grips	Marin Custom Dual Density Women’s Grips for 19.1mm Bars
Brakes Front	Forged Alloy Linear Pull
Brakes Rear	Forged Alloy Linear Pull
Brake Levers	Shimano with Integrated Shifters
Pedals	Composite

Marin also offer two traditional, open-frame bikes, the ladies versions of the Bolinas and Pioneer...........

BOLINAS RIDGE Ł399

Marin Bolinas Ridge

Sizes	15" 17"
Frame	6061 Double Butted Aluminum with Edge 3 OS Top and Down Tubes
Fork	Spinner Grind OS 1HL, 100mm with Oversize 28.6mm Legs, Preload Adjustment and Lockout
Headset	Ritchey LB, 1 1/8", Threadless
Rear Hub	Alloy Double Sealed, 32 Hole Disc with QR
Front Hub	Alloy Double Sealed, 32 Hole Disc with QR
Spokes	WTB 15 Gauge Stainless
Rims	Alex CA-20, Double Wall, 32 Hole with CNC Side Walls
Tyres	WTB Prowler MX Comp, 26" x 2.1" (49/52)
Shift Levers	Shimano Acera Rapid Fire Plus
Front Derailleur	Shimano Altus FD-M310
Rear Derailleur	Shimano Acera
Cassette	Shimano HG 40, 11-32, 8 Speed
Chain	HG40
Crankset	FSA C-Drive, 42T/32/22
Bottom Bracket	Sealed Cartridge
Seatpost	Alloy Micro Adjust, 27.2mm x 350mm
Saddle	WTB Speed V Sport LE with Love Channel and Comfort Zone
Bar	Double Butted 6061 Alloy, OS-31.8mm, 25.4mm Rise
Stem	Marin OS Alloy Threadless, with 31.8mm Bar Clamp
Grips	Marin Extra Dual Density
Brakes Front	Forged Alloy Linear Pull
Brakes Rear	Forged Alloy Linear Pull
Brake Levers	Forged Alloy 3 Finger
Pedals	Composite

PIONEER TRAIL Ł325

Marin Pioneer Trail

Sizes	15" 17"
Frame	6061 Double Butted Aluminum with Edge 3 OS Top and Down Tubes
Fork	Spinner Grind OS 2, 100mm with Oversize 28.6mm Legs and Preload Adjustment
Headset	Ritchey LB, 1 1/8", Threadless
Rear Hub	Alloy Double Sealed, 32 Hole Disc with QR
Front Hub	Alloy Double Sealed, 32 Hole Disc with QR
Spokes	WTB 15 Gauge Stainless
Rims	Alex AP17, 32 Hole
Tyres	Kenda Koyote, 26" x 1.95", Knobby
Shift Levers	Shimano EF50 EZ-FIRE Plus, 8 Speed
Front Derailleur	Shimano Altus FD-M310
Rear Derailleur	Shimano Altus
Cassette	Shimano HG30, 11-30, 8 Speed
Chain	Shimano HG40
Crankset	TruVativ X-Flow 3.0, 42/32/22
Bottom Bracket	TruVativ with Sealed Cartridge
Seatpost	Alloy Micro Adjust, 27.2mm x 350mm
Saddle	Comfort Sport
Bar	Double Butted 6061 Alloy, OS-31.8mm, 25.4mm Rise
Stem	Marin OS Alloy Threadless, with 31.8mm Bar Clamp
Grips	Marin Extra Dual Density
Brakes Front	Forged Alloy Linear Pull
Brakes Rear	Forged Alloy Linear Pull
Brake Levers	Shimano with Integrated Shifters
Pedals	Composite

Marin 2008

NAIL TRAIL Ł799

Lightweight frame, Marzocchi lockout fork and good general component spec. Something of a "love it or hate it " colour. Fortunately most people seem to love it!

Marin Nail Trail

Sizes	17" 19" 20.5" 22"
Frame	6061 Aluminum, Triple Butted Hydro-Edge Top and Down Tubes, Butted 4-Side Seat and Chain Stays, Disc Specific
Fork	Marzocchi MX Pro Lo, 100mm Travel, with Preload, Rebound Adjustment and Lockout
Headset	TH-888, 1 1/8in Threadless
Rear Hub	Shimano Deore, 32 Hole Disc
Front Hub	Shimano Deore, 32 Hole Disc
Spokes	WTB 15 Gauge Black Stainless
Rims	Mavic XM-117, 32 Hole Disc
Tyres	WTB Prowler MX Folding Comp, 26” x 2.1" (49/52)
Shift Levers	Shimano LX, 2 Way Release, 9 Speed
Front Derailleur	Shimano Deore
Rear Derailleur	Shimano LX
Cassette	Shimano, 11-34, 9 Speed
Chain	SRAM PC-951
Crankset	TruVativ Firex 3.1, 44/32/22 with Alloy Outer Chainring and Giga X Pipe External BB System
Bottom Bracket	TruVativ with Giga X Pipe Exterior System Integrated with Crankset
Seatpost	Comp Alloy Micro Adjust, 30.9mm x 400mm
Saddle	WTB Speed V Comp with Love Channel and Comfort Zone
Bar	Double Butted 6061 Alloy, OS-31.8mm, 25.4mm Rise
Stem	FSA OS150 Threadless with Alloy Face Plate and 31.8mm Bar Clamp
Grips	Super Diamond
Brakes	Avid Juicy 3 Hydraulic Disc
Brake Levers	Avid Hydraulic Disc
Pedals	Alloy Double Sided Mountain

BOLINAS RIDGE Ł359

Marin Bolinas Ridge

Sizes	15" 17" 19" 20.5" 22"
Frame	6061 Butted Edge 3 Top and Down Tubes, 4 Side Rear Stays
Fork	RockShox Dart 1, 100mm with Preload Adjustment
Headset	Ritchey LB 1 1/8in Threadless
Rear Hub	Alloy Double Sealed, 32 Hole Disc with QR
Front Hub	Alloy Double Sealed, 32 Hole Disc with QR
Spokes	WTB 15 Gauge Stainless
Rims	Alex TA-20, Double Wall, 32 Hole with CNC Side Walls
Tyres	Kenda Koyote, 26" x 2.1", Knobby
Shift Levers	Shimano EF50 EZ-FIRE Plus, 8 Speed
Front Derailleur	Shimano Altus
Rear Derailleur	Shimano Alivio
Cassette	Shimano HG-40, 11-32, 8 Speed
Chain	Shimano HG-40
Crankset	FSA Dynadrive, 42T/32/22
Bottom Bracket	Sealed Cartridge
Seatpost	Alloy Micro Adjust, 27.2mm x 350mm
Saddle	Comfort Sport
Bar	Double Butted 6061 Alloy, OS-31.8mm, 25.4mm Rise
Stem	Marin OS Alloy Threadless, with 31.8mm Bar Clamp
Grips	Marin Comfort Dual Density
Brakes	Forged Alloy Linear Pull
Brake Levers	Shimano with Integrated Shifters
Pedals	Composite

Mongoose 2009

ROCKADILE AL Ł209.95

Mongoose Rockadile AL gents
Mongoose Rockadile AL ladies

Sizes	Gents : XS, S, M, L, XL Ladies : S, M
Colours	Gents : Black Ladies : Blue
Frame	Heat treated 6061 alloy w/ replaceable hanger
Fork	Suntour M2025 alloy crown, 63mm travel
Crankset	ProWheel forged alloy triple (24/34/42T)
Bottom Bracket	VP semi-cartridge
Pedals	Resin w/ steel axle
Front Derailleur	Gents : Shimano TY10 Ladies : Shimano TY11
Rear Derailleur	Gents : Shimano TX31 Ladies : Shimano TX32
Shift Levers	SunRace M33 triggers 21 spd
Cassette	Shimano TZ07 14-28T, 7-speed
Chain	Gents : KMC Z51 Ladies : KMC Z52
Rims	Alex Z1000 w/ wear indicator
Front Hub	Formula Alloy QR 36H
Rear Hub	Formula Alloy freewheel QR 36H
Spokes	14G stainless
Brake Levers	ProMax Alloy w/ adjuster
Bar	Mongoose low-rise bar
Stem	Mongoose alloy Ahead
Grips	Mongoose Dual density Kraton w/ gel insert
Saddle	Mongoose sport
Seatpost	Mongoose Alloy w/ micro adjust clamp

ROCKADILE AL 24 Ł199

Mongoose Rockadile AL 24 boys
Mongoose Rockadile AL 24 girls

Sizes	24"
Colours	Boys : Black Girls : Dark rasperry
Frame	Heat treated 6061 alloy w/ replaceable hanger
Fork	Suntour M2025 alloy crown suspension
Crankset	ProWheel forged alloy triple (24/34/42T)
Bottom Bracket	VP semi-cartridge
Pedals	Resin w/ steel axle
Front Derailleur	Boys : Shimano TY10 Girls : Shimano TY11
Rear Derailleur	Boys : Shimano TX31 Girls : Shimano TX32
Shift Levers	Shimano Revo Shift
Cassette	Shimano TZ07 14-28T, 7-speed
Chain	Boys : KMC Z51 Girls : KMC Z52
Rims	Alex Z1000 w/ wear indicator
Front Hub	Formula Alloy 36H
Rear Hub	Formula Alloy freewheel 36H
Spokes	14G stainless
Brake Levers	ProMax Alloy w/ adjuster
Bar	Mongoose low-rise bar
Stem	Mongoose alloy Ahead
Grips	Mongoose Dual density Kraton w/ gel insert
Saddle	Mongoose sport
Seatpost	Mongoose Alloy

ROCKADILE AL 20 Ł189

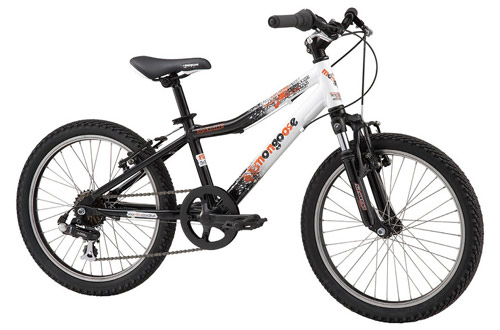

Mongoose Rockadile AL 20 boys
Mongoose Rockadile AL 20 girls

Sizes	20"
Colours	Boys : Blue Girls : Pink
Frame	Heat treated 6061 alloy
Fork	Suntour M2025 alloy crown suspension
Crankset	ProWheel steel w/ dual chainguard and 40T ring
Bottom Bracket	VP semi-cartridge
Pedals	Resin w/ steel axle
Front Derailleur	N/A
Rear Derailleur	Boys : Shimano FT30 Girls : Shimano FT31
Shift Levers	Shimano Revo Shift
Cassette	Shimano TZ07 14-28T, 7-speed
Chain	Boys : KMC Z50 Girls : KMC Z51
Rims	Alex Z1000 w/ wear indicator
Front Hub	Formula Alloy 36H
Rear Hub	Formula Alloy 36H
Spokes	14G stainless
Brake Levers	ProMax Alloy w/ adjuster
Bar	Mongoose low-rise bar
Stem	Mongoose alloy Ahead
Grips	Mongoose Dual density Kraton w/ gel insert
Saddle	Mongoose sport
Seatpost	Mongoose Alloy

Mongoose 2008

ROCKADILE ALX V Ł199

Mongoose Rockadile ALX V

Size	S, M, L, XL
Colour	Grey
Frame	Mongoose heat treated alloy
Forks	SR/Suntour M-2000 suspension fork
Cassette	Sunrace 13-30t 7 speed
Rear Derailleur	Shimano
Shifters	Shimano EX fire
Rims	Alex Z-1000
Tires	Kenda Komodo
Brakes	Promax linear pull

ROCKADILE AL Ł179

Mongoose Rockadile AL Gents
Mongoose Rockadile ALLadies

Size	Mens : XS, S, M, L, XL Womens : S, M
Colour	Mens : Blue/ Silver Womans : Green/ Silver
Frame	Mongoose heat treated alloy
Forks	SR/Suntour suspension fork with Clix dropout
Chainset	Shimano
Rear Derailleur	Shimano TX30
Shifters	Sunrace dual M33 trigger
Tires	Kenda Komodo
Brakes	Promax linear pull

ROCKADILE AL 20" Ł159

Mongoose Rockadile AL 20 Boys
Mongoose Rockadile AL 20 Girls

Size	One size
Colour	Boys : Red/ Silver Girls : Pink/ White
Frame	Mongoose heat treated alloy
Forks	SR/Suntour M-2000 suspension fork
Rear Derailleur	Shimano FT30
Shifters	Shimano revo shift 7spd
Freewheel	Shimano 7spd
Brakes	Promax linear pull

GT 2009

AVALANCHE 1.0 DISC Ł629

GT Avalanche 1.0 Disc

Sizes	S, M, L, XL
Frame	GT Triple Triangle design 6061 butted aluminum with new hydroformed downtube, zero stack headtube. Disc compatible with removeable der. hanger
Fork	SR MAG-32, 100mm of travel w/. 32mm alum stanchions, magnesium lowers, with lock out , preload and hydraulic damping
Headset	Tange system for 1 1/8"
Rear Hub	Shimano Disc 9 speed
Front Hub	Shimano Disc
Spokes	Stainless steel 14 gauge
Rims	WTB SX-24 ATB black anodized
Tyres	Kenda Nevegal, 26 x 2.1
Shift Levers	Shimano Deore 9 speed separate
Front Derailleur	Shimano Deore
Rear Derailleur	Shimano SLX Top- Normal
Cassette	SRAM Nine speed index 11-32
Chain	Shimano HG-53 Nine Speed
Crankset	FSA Alpha Drive 44/32/22
Bottom Bracket	FSA Sealed Bearing Cartridge
Seatpost	Alloy Micro adjust
Seatclamp	GT Forged Alum QR
Saddle	WTB Pure V, with stitched cover and protective corners
Bar	GT Mtn Riser, 15 mm rise, 6061 heat treated, 31.8 mm clamp
Stem	GT ATB, 31. 8mm bar bore threadless 15 degree rise with four bolt alum face plate
Grips	GT Dual Density ATB
Brakes Front	Tektro Auriga comp, hydraulic, dual piston, cold forged
Brakes Rear	Tektro Auriga comp, hydraulic, dual piston, cold forged
Brake Levers	Tektro
Pedals	Shimano PDM-520 clipless pedal with cleats

AVALANCHE 2.0 DISC Ł449

GT Avalanche 2.0 Disc

Sizes	S, M, L, XL
Frame	GT Triple Triangle design 6061 butted aluminum with hydroformed downtube, zero stack headtube. Disc compatible with removeable der. Hanger
Fork	Suntour XCR-LO hydraulic fork with cr-mo 30 mm stanchions, magnesium lowers, preload adjust, 100 mm of travel and lock out
Headset	Tange Seiki system for 1 1/8"
Rear Hub	Aluminum QR sealed mechanism 8 speed cassette for Disc
Front Hub	Alloy QR for Disc
Spokes	Stainless steel 14 gauge
Rims	Jalco AX-430 Alloy double wall ATB
Tyres	Kenda Nevegal, 26 x 2.1
Shift Levers	Shimano 8 speed rapidfire shifters
Front Derailleur	Shimano M -330
Rear Derailleur	Deore M-531 top-normal
Cassette	Shimano Eight Speed, 11-32 ratio
Chain	HG 40 Shimano 8 speed Chain
Crankset	Shimano FC-M311 42/32/22
Bottom Bracket	Shimano Cartridge Sealed
Seatpost	Alloy Micro adjust
Seatclamp	GT Forged Alum QR
Saddle	WTB Pure V, with stitched cover and protective corners
Bar	Alum. 31.8 mm 20 mm Rise, 6 degree bend, anatomically sized
Stem	GT ATB, 31. 8mm bar bore threadless 15 degree rise with four bolt alum face plate
Grips	GT Dual Density ATB
Brakes Front	Tektro Aquila Disc, mechanically activated, with Shimano compatible brake pads
Brakes Rear	Tektro Aquila Disc, mechanically activated, with Shimano compatible brake pads
Brake Levers	Pro Max cold forged for disc brake
Pedals	ATB Aluminum body, Steel cage, toe clip compatible

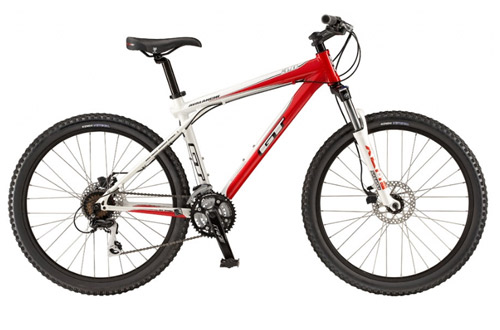

AVALANCHE 3.0 DISC Ł339

GT Avalanche 3.0 Disc

Sizes	XS, S, M, L, XL
Frame	GT Triple Triangle design 6061 butted aluminum with hydroformed downtube, zero stack headtube. Disc compatible with removeable der. Hanger
Fork	SR Suntour XCM one piece aluminum lowers with disc mount and preload adjustment, 100 mm travel with lock out
Headset	Tange Seiki system for 1 1/8"
Rear Hub	8 speed Cassette with QR for Disc
Front Hub	Alloy QR for Disc
Spokes	Stainless steel 14 gauge
Rims	Alex ASD-1 double wall, anodized black
Tyres	Kenda Nevegal, 26 x 2.1
Shift Levers	Shimano 8 speed rapidfire shifters
Front Derailleur	Shimano M -330
Rear Derailleur	Shimano Alivio
Cassette	Shimano Eight Speed, 11-32 ratio
Chain	IG-31
Crankset	Suntour XCT-302, 42,32,22 for eight speed
Bottom Bracket	Cartridge Sealed
Seatpost	Alloy Micro adjust
Seatclamp	GT Forged Alum QR
Saddle	WTB Speed V
Bar	Alum. 31.8 mm 20 mm Rise, 6 degree bend, anatomically sized
Stem	GT ATB, 31. 8mm bar bore threadless 15 degree rise with four bolt alum face plate
Grips	GT Dual Density ATB
Brakes Front	Tektro IO, cable actuated disc brake
Brakes Rear	Tektro IO, cable actuated disc brake
Brake Levers	Alloy with reach adjust for linear pull brakes
Pedals	High Impact nylon MTB with Steel Cage

OUTPOST DISC Ł279

GT Outpost Disc

Sizes	XS, S, M, L, XL
Frame	6061, Triple Triangle, with Dirt Worthy Geometry, disc compatible with removeable hanger (24 inch wheel not removable)
Fork	SR M 2025, alloy crown with 75 mm travel
Headset	Aheadset Threadless
Rear Hub	Alloy 8 speed Disc Cassette with QR
Front Hub	Alloy QR for Disc
Spokes	Stainless steel 14 gauge
Rims	Alloy ATB, black anodized
Tyres	ATB Dual purpose, 27 TPI 26 x 2.1
Shift Levers	Shimano ST-EF50 8 speed EZ fire shifters
Front Derailleur	Shimano C-050
Rear Derailleur	Shimano Acera
Cassette	Shimano Eight Speed Cassette, 11-32 ratio
Chain	8 speed index
Crankset	Suntour XCC-T02, 42,32,22
Bottom Bracket	Cartridge Sealed, square taper
Seatpost	Alloy Micro adjust
Seatclamp	Alum QR
Saddle	GT Custom MTN with anatomic pressure relief
Bar	20 mm Rise, 6 degree bend, anatomically sized
Stem	GT ATB, threadless 25 degree rise with four bolt alum face plate
Grips	GT Dual Density ATB
Brakes Front	Pro-Max Cable actuated Disc
Brakes Rear	Pro-Max Cable actuated Disc
Brake Levers	Shimano ST-EF50
Pedals	High Impact nylon platform

GT 2008

AVALANCHE 1.0 DISC Ł499

This is a fantastic bike for the money - lightweight butted frame,hydraulic brakes and a good general component list. There is probably no better bike below Ł500 !!

GT Avalanche 1.0 Disc

Sizes	XS, S, M, L, XL
Frame	GT Triple Triangle design 6061 butted aluminum with new hydroformed downtube, zero stack headtube. Disc compatible with removeable der. hanger
Fork	SR X-100 fork, 100 mm travel w/32mm alum stanchions, magnesium lowers with lockout, preload adjust and hydraulic damping
Crankset	Shimano 44/34/22 9-speed Octalink compatible
Pedals	Wellgo M21 XC
Front Derailleur	Shimano Deore
Rear Derailleur	Shimano Deore LX
Shifters	Shimano Deore trigger shifters
Rear Cogs	SRAM Nine speed index cassette 12-32
Chain	Shimano HG-53 Nine Speed
Rims	Alloy double wall disc
Tires	Kenda Nevegal 2.1”
Front Hub	Shimano disc
Rear Hub	Shimano disc
Spokes	Stainless steel 14 gauge
Nipples	Brass CP
Front Brake	Tektro Auriga Comp hydraulic disc
Rear Brake	Tektro Auriga Comp hydraulic disc
Handlebar	GT Riser Bar
Stem	GT ATB, threadless 25 degree rise with four bolt alum CNC face plate for 31.8mm
Grips	GT Dual Density ATB
Headset	Tange system for 1 1/8"
Saddle	WTB Speed V saddle
Seat Post	Micro-adjust seatpost
Seat Clamp	GT Forged Alum QR

Trek 2009

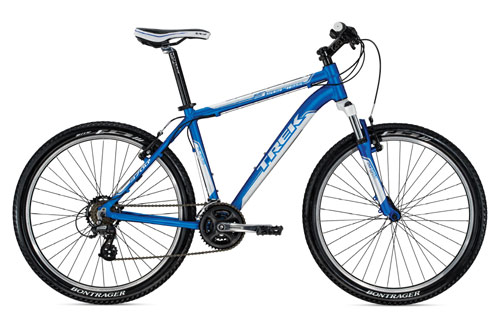

3700 Ł275

Trek 3700

Sizes	13, 16, 18, 19.5, 21, 22.5"
Frame	Alpha White Aluminum w/externally relieved head tube, bi-axial down tube, disc compatible dropouts
Front Suspension	SR Suntour M-2025, 63mm
Wheels	Alloy hubs; Matrix 550 rims w/brushed sidewalls
Tyres	Bontrager Connection Trail, 26x2.0"
Shifters	Shimano EF50, 7 speed
Front Derailleur	Shimano C051
Rear Derailleur	Shimano Acera
Crank	SR Suntour XCC-T208 48/38/28
Cassette	Sun Race 13-34, 7 speed
Pedals	Nylon platform
Saddle	Bontrager Approved
Seat Post	Bontrager SSR, 20mm offset
Handlebars	Bontrager Approved, 30mm rise
Stem	Bontrager Approved, 25 degree
Headset	VP-A76C-TK, 1 1/8" semi-cartridge, sealed
Brakeset	Tektro V w/Shimano EF50 levers

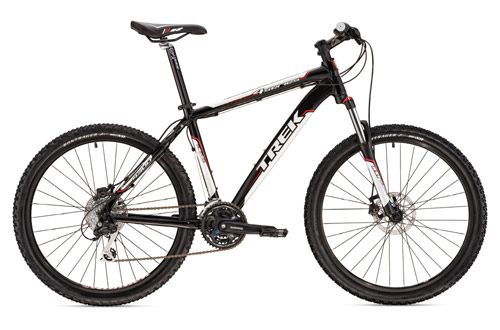

4300 Ł350
With cable disc brakes Ł400

Trek 4300

Sizes	13, 16, 18, 19.5, 21, 22.5, 24"
Frame	Alpha Black Aluminum w/externally relieved head tube, hydroformed bi-axial down tube, monostay seatstays, forged disc ready dropouts
Front Suspension	RST Gila T8 w/preload, 100mm
Wheels	Alloy front hub, Shimano RM30 rear hub; Bontrager Camino, 32-hole rims w/yelets, machined sidewalls
Tyres	Bontrager Connection Trail, 26x2.0"; 27 tpi
Shifters	Shimano EF50, 8 speed
Front Derailleur	Shimano C050
Rear Derailleur	Shimano Alivio
Crank	SR Suntour XCC-T102 42/34/24
Cassette	SRAM PG830 11-32, 8 speed
Pedals	Alloy platform
Saddle	Bontrager Select Basic
Seat Post	Bontrager SSR, 20mm offset
Handlebars	Bontrager SSR, 25mm rise
Stem	Bontrager SSR, 25 degree
Headset	VP-A76C-TK, 1 1/8" semi-cartridge, sealed
Brakeset	Tektro V w/Shimano EF50 levers

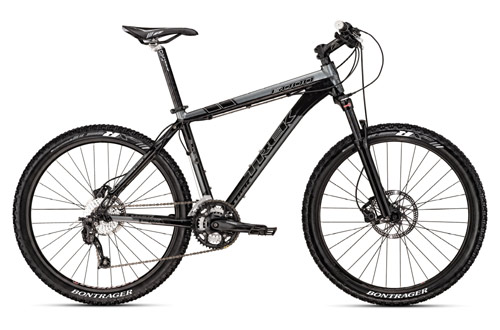

6000 Ł550

Trek 6000

Sizes	15.5, 17.5, 18.5, 19.5, 21.5"
Frame	Alpha Black Aluminum w/externally relieved head tube, hydroformed bi-axial down tube and top tube, monostay seatstays, forged disc ready dropouts
Front Suspension	SR Suntour XCR w/preload, lockout, 100mm
Wheels	Shimano M495 disc hubs; Bontrager Ranger, 32-hole rims w/eyelets
Tyres	Bontrager Jones XR, 26x2.2/2.25"; 27 tpi
Shifters	Shimano Deore, 9 speed
Front Derailleur	Shimano Alivio
Rear Derailleur	Shimano Deore
Crank	Shimano Alivio 42/32/22
Cassette	SRAM PG950 11-34, 9 speed
Pedals	Alloy platform
Saddle	Bontrager Race Basic
