Our Full Suspension brands are Marin, Whyte,Trek and Mongoose.

We no longer stock budget priced full suspension machines but we can get to order for you bikes by Raleigh, Barracuda, Saracen and Claud Butler. These can be as cheap as Ł150, but we strongly recommend, if you are thinking of spending much under Ł500 on a bike, that you should buy a Hardtail rather than an FRS.

In this price range, FRS bikes are always heavy and often have crude rear suspension systems. These don't usually work particularly well and are not designed with long term servicability in mind. You can find yourself with a bike that is worn out after only a couple of years use.

On the other hand, for Ł300 to Ł400 you can get a very nice hardtail, which will be lighter weight and give you years of good service.

Marin and Whyte are at the forefront of advanced full suspension design. Marin are a Californian company, but since 1996 their dominant design influences have been from Britain. The UK distributor, ATB Sales, helped set up a design team in England headed by suspension guru Jon Whyte and from that point on Marin and Whyte designs have proved themselves unbeatable for British riding conditions.

Whyte was created by ATB Sales as a British brand to run alongside Marin. Because they are from the same design stable they share many of their suspension features, but the Whytes tend to be more exotic than the Marins, and new innovations will appear on the Whytes first.

From the outset a prime consideration for the Marin/Whyte design team was to make bikes which would work well in our muddy conditions and keep working well. All the bikes have excellent mud clearances and, most importantly, use top quality main pivot bearings which are guaranteed for life. This guarantee is, as far as we know,unique in the cycle world!

Whyte 2008

Brand new for 2008,the Whyte E120 is a stunning bike.Combining the Whyte team's unrivalled suspension design skills with a beautiful all-carbon frame,this bike will be the new benchmark for all other brands to aspire to. 120mm of travel and super-light too.Photographs don't do the E120 justice-you really need to see and feel it in the flesh to appreciate its perfect sculpted form......

WHYTE E120-XT Ł2899SEE SALE PAGES!

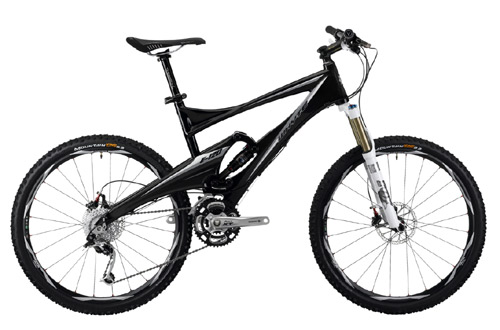

Whyte E120 XT

Sizes	S, M. L
Frame	Uni-directional Multi Monoque front triangle, single monoque Rear Swing arm, Carbon Linkages
Fork	Fox F120RL, 120mm, White
Shifters	Shimano XT SL-M770
Brake Levers	Shimano XT
Crankset	Shimano XT FC-M770, 44/32/22 with Hollowtech II Arms and Carbon Middle Chain Ring
Chain	Shimano HG-73
Front Mech	Shimano XT, FD-M770
Rear Mech	Shimano XT, Shadow, RD-M770
Cassette	Shimano CS-M770 11-34
Rear Hub	Shimano XT Wheelset WH-M775 with Centre Lock Disk Rotors
Front Hub	Shimano XT Wheelset WH-M775 with Centre Lock Disk Rotors
Bottom Bracket	Shimano XT Big Pipe Billet Integrated with Crankset
Brakes	Shimano XT 160mm Rotors
Rims	Shimano XT Wheelset WH-M775
Spokes	Shimano XT Wheelset WH-M775
Tyres	Continental Mountain King 26 X 2.2" with Kevlar Bead
Headset	FSA Special Whyte Intergrated headset, with 1/18" top and 1 1/4" lower Sealed Cartridge Bearings
Seatpost	Thomson, 30.9mm x 410mm, 7 degree layback
Saddle	Fi'zi:k Gobi with Mag Rails
Bar	Easton Monkeylite XC Low Rise, 31.8mm OD, 385mm Long
Stem	Easton EA50 31.8mm Bar Clamp, 90mm S & M, 100mm L
Grips	Whyte Lock-on's
Rear Shock	Fox Float RP2, with Rebound Adjuster and 2 Position ProPedal Lever Adjustment, Whyte Designs Cartridge Bearing Shock Bushings

WHYTE E120-TEAM Ł3999SEE SALE PAGES!

Fork	Fox F120RLC, 120mm, White
Shifters	Shimano XTR SL-M970
Brake Levers	Hope Pro
Crankset	Shimano XTR FC-M970, 44/32/22 with Hollowtech II Arms and Carbon Middle Chain Ring
Chain	Shimano CN-7701
Front Mech	Shimano XTR FD-M970
Rear Mech	Shimano XTR, S RD-M972
Cassette	Shimano CS-M970 11-32
Rear Hub	Hope X-C Pro III Wheel set using Hope Pro III hubs
Front Hub	Hope X-C Pro III Wheel set using Hope Pro III hubs
Bottom Bracket	Shimano XTR Big Pipe Billet Integrated with Crankset
Brakes	Hope Pro
Rims	Hope Pro III Wheel set using DT 4.2D Rims
Spokes	Dt Straight Pull
Tyres	Panaracer Razor 26 X 2.1" with Kevlar Bead
Headset	FSA Special Whyte Intergrated headset, with 1/18" top and 1 1/4" lower Sealed Cartridge Bearings
Seatpost	Easton EC70, 30.9mm x 400mm
Saddle	Fi'zi:k Gobi with Ti Rails
Bar	Easton Monkeylite XC Low Rise, 31.8mm OD
Stem	Thomson X4, 31.8mm Bar Clamp, 90mm S & M, 100mm L
Grips	Whyte Lock-on's
Rear Shock	Fox Float RP2/3, with Rebound Adjuster and 2 Position ProPedal Lever Adjustment, Whyte Designs Cartridge Bearing Shock Bushings

WHYTE E120 FRAME ONLY Ł1699

Frame	Uni-directional Multi Monoque front triangle, single monoque Rear Swing arm, Carbon Linkages
Headset	FSA Special Whyte Intergrated headset, with 1/18" top and 1 1/4" lower Sealed Cartridge Bearings
Rear Shock	Fox Float RP2/3, with Rebound Adjuster and 2 Position ProPedal Lever Adjustment, Whyte Designs Cartridge Bearing Shock Bushings

Go to Hardtails to see the new WHYTE 19 and 905

Marin 2009

QUAD XC 120

MOUNT VISION 5.9 Ł3499

Marin Mount Vision 5.9

Sizes	S, M, L, XL
Frame	6066 Aluminum, Fully Hydroformed Mainframe and Swingarm, Quad-Link 2.0 120mm Suspension System, with Modular Dropouts
Fork	Fox 32 F120RLC, 120mm with Rebound and Compression Adjustment, Lockout and Air Spring Preload, with 15mm Through Axle
Rear Shock	Fox Float RP23 with Rebound Adjustment, Dual Position ProPedal with 3 Position ProPedal Lever Adjustment
Headset	Orbit MX, 1 1/8", Threadless, Alloy
Rear Hub	Shimano XTR, 32 Hole Disc
Front Hub	Shimano XTR, 32 Hole Centerlock Disc, with 15mm Through Axle QR
Spokes	DT Super Comp 14/16.5/15 Butted, Black Stainless with Alloy Nipples
Rims	Mavic XC-717, 32 Hole Disc
Tyres	WTB Prowler MX Folding, 26" x 2.1" (49/52)
Shift Levers	Shimano XTR, 2 Way and Instant Release, 9 Speed
Front Derailleur	Shimano XTR
Rear Derailleur	Shimano Shadow XTR
Cassette	Shimano XTR, 11-34, 9 Speed
Chain	Shimano XTR
Crankset	Shimano XTR, 44/32/22 with HollowTech II Arms
Bottom Bracket	Shimano XTR Big Pipe Billet Integrated with Crankset
Seatpost	Thomson Elite, 30.9mm X 400mm
Saddle	WTB Silverado Team with Nicro Rails
Bar	Easton Monkey Lite XC, UD Carbon, OS-31.8mm, Low Rise
Stem	Thomson Elite X4 Threadless with, 31.8mm Bar Clamp
Grips	Marin Locking
Brakes Front	Shimano XTR Hydraulic Disc with 6" Rotor
Brakes Rear	Shimano XTR Hydraulic Disc with 6" Rotor
Brake Levers	Shimano XTR Hydraulic Disc
Pedals	None

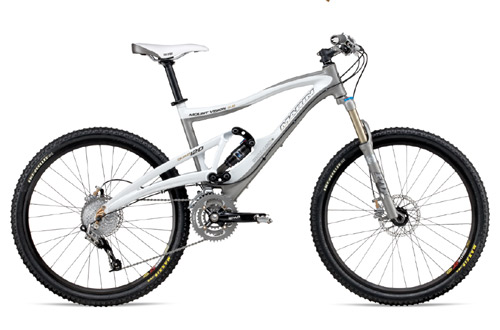

MOUNT VISION 5.8 Ł2249

Marin Mount Vision 5.8

Sizes	S, M, L, XL
Frame	6066 Aluminum, Fully Hydroformed Mainframe and Swingarm, Quad-Link 2.0 120mm Suspension System, with Modular Dropouts
Fork	Fox 32 F120RL, 120mm with Rebound Adjustment, Lockout and Air Spring Preload, with 15mm Through Axle
Rear Shock	Fox Float RP23 with Rebound Adjustment, Dual Position ProPedal with 3 Position ProPedal Lever Adjustment
Headset	Orbit MX, 1/18" Threadless, Alloy
Rear Hub	Hope Pro 2, 32 Hole Disc
Front Hub	Hope Pro 2, 32 Hole Disc
Spokes	DT Competition 14/15/14 Double Butted, Black Stainless with Alloy Nipples
Rims	Mavic XM-317, 32 Hole Disc
Tyres	Maxxis High Roller, 26" x 2.1", Folding
Shift Levers	Shimano XT, 2 Way and Instant Release, 9 Speed
Front Derailleur	Shimano XT
Rear Derailleur	Shimano Shadow XT
Cassette	Shimano XT, 11-34, 9 Speed
Chain	Shimano XT
Crankset	Shimano XT, 44/32/22 with HollowTech II Arms and Composite Middle Chain Ring
Bottom Bracket	Shimano XT Big Pipe Billet Integrated with Crankset
Seatpost	FSA SL-250, 30.9mm x 400mm
Saddle	WTB Silverado Race SL with Cromoly Rails
Bar	Easton EA70 MonkeyBar, OS-31.8mm, Low Rise
Stem	FSA OS150LX Threadless, with Alloy Face Plate and 31.8mm Bar Clamp
Grips	Marin Locking
Brakes Front	Hayes Stroker Carbon Hydraulic Disc with V6 Rotor
Brakes Rear	Hayes Stroker Carbon Hydraulic Disc with V6 Rotor
Brake Levers	Hayes Hydraulic Disc Carbon
Pedals	Shimano M520 Clipless

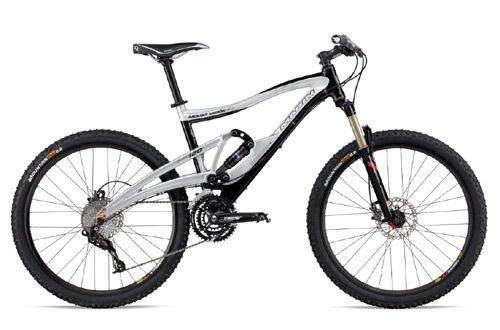

MOUNT VISION 5.7 Ł1799

Marin Mount Vision 5.7

Sizes	S, M, L, XL
Frame	6066 Aluminum, Fully Hydroformed Mainframe and Swingarm, Quad-Link 2.0 120mm Suspension System, with Modular Dropouts
Fork	Fox 32 F120R, 120mm, with Rebound Adjustment and Air Spring Preload, with 15mm Through Axle
Rear Shock	Fox Float RP2 with Rebound Adjustment, Dual Position ProPedal Lever
Headset	TH-857, 1 1/8", Threadless, Alloy
Rear Hub	Shimano Deore, 32 Hole Disc
Front Hub	Alloy Cartridge Sealed, 32 Hole Disc, with 15mm Through Axle
Spokes	DT 15 Gauge Black Stainless
Rims	Mavic XM-317, 32 Hole Disc
Tyres	WTB Prowler MX Folding, 26" x 2.1" (49/52)
Shift Levers	Shimano SLX, 2 Way Release, 9 Speed
Front Derailleur	Shimano Deore
Rear Derailleur	Shimano Shadow XT
Cassette	Shimano HG61, 11-34, 9 Speed
Chain	Shimano HG61
Crankset	Shimano HollowTech II Arms, 44/32/22
Bottom Bracket	Shimano with HollowTech II Arms Big Pipe Billet Integrated with Crankset
Seatpost	Comp Alloy Micro Adjust, 30.9mm x 400mm
Saddle	WTB Laser V Comp with Love Channel, Comfort Zone and Cromoly Rails
Bar	Double Butted 6061 Alloy, OS-31.8mm, 25.4mm Rise
Stem	FSA OS150LX Threadless, with Alloy Face Plate and 31.8mm Bar Clamp
Grips	Super Diamond
Brakes Front	Hayes Stroker Trail Hydraulic Disc with V6 Rotor
Brakes Rear	Hayes Stroker Trail Hydraulic Disc with V6 Rotor
Brake Levers	Hayes Hydraulic Disc
Pedals	Shimano M520 Clipless

MOUNT VISION 5.6 Ł1449

Marin Mount Vision 5.6

Sizes	S, M, L, XL
Frame	6066 Aluminum, Fully Hydroformed Mainframe and Swingarm, Quad-Link 2.0 120mm Suspension System, with Modular Dropouts
Fork	RockShox TORA Trail 302 Solo Air, 120mm with External Rebound Adjustment and TurnKey Lockout
Rear Shock	Fox Float R with Rebound Adjustment
Headset	TH-888, 1 1/8" Threadless
Rear Hub	Shimano Deore, 32 Hole Disc
Front Hub	Shimano Deore, 32 Hole Disc
Spokes	WTB 15 Gauge Black Stainless
Rims	Mavic XM-117, 32 Hole Disc
Tyres	WTB Prowler MX Folding, 26" x 2.1" (49/52)
Shift Levers	SRAM X-5, 9 Speed Trigger
Front Derailleur	Shimano Deore
Rear Derailleur	SRAM X-7
Cassette	SRAM PG-950, Power Glide II, 11-34, 9 Speed
Chain	Shimano HG53
Crankset	TruVativ Five D 3.1, 44/32/22 with Alloy Outer Chainring
Bottom Bracket	TruVativ with Sealed Cartridge
Seatpost	Comp Alloy Micro Adjust, 30.9mm x 400mm
Saddle	WTB Speed V ATB with Love Channel and Comfort Zone
Bar	Double Butted 6061 Alloy, OS-31.8mm, 25.4mm Rise
Stem	Marin OS Alloy Threadless, with 31.8mm Bar Clamp
Grips	Super Diamond
Brakes Front	Hayes Stroker Ryde Hydraulic Disc with V6 Rotor
Brakes Rear	Hayes Stroker Ryde Hydraulic Disc with V6 Rotor
Brake Levers	Hayes Hydraulic Disc
Pedals	Ritchey Logic Mountain V4 Clipless

QUAD TRAIL 140

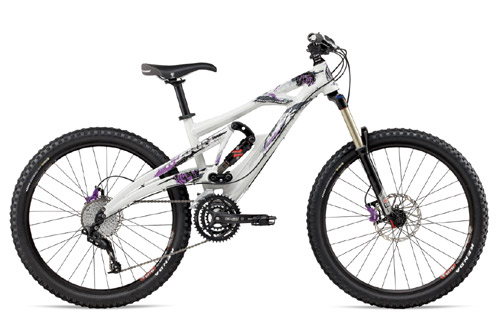

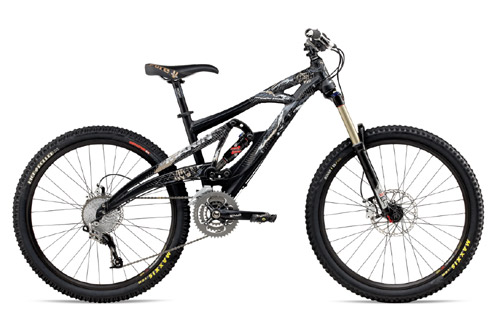

ATTACK TRAIL Ł3499

Marin Attack Trail

Sizes	S, M, L
Frame	6061 Aluminum, Fully Hydroformed Mainframe and Swingarm, Quad-Link 2.0 140mm Suspension System, ISCG Mounts, with Modular 135mm Maxle Dropouts
Fork	RockShox Lyrik U-Turn, 115-160mm of travel with Travel Adjust, with External Rebound and Compression Adjustment, Mission Control Damping, with Maxle 360 20mm Axle
Rear Shock	MonRockShox Monarch 4.2 with Rebound Adjustment, On/Off Position Floodgate Switch and Air spring Adjustment
Headset	Integrated, 1.5" lower bearing and 1 1/8" upper bearing
Rear Hub	Mavic SX Disc, 24 Hole, with 12mm Through Axle
Front Hub	Mavic SX Disc, 24 Hole, with 20mm Through Axle
Spokes	Mavic SX Disc Wheelset
Rims	Mavic SX, Enduro
Tyres	Maxxis Minion 26" x 2.35" Kevlar Bead Front, Maxxis High Roller 26" x 2.35" Kevlar Bead Rear
Shift Levers	SRAM X.0, 9 Speed Trigger
Front Derailleur	N/A
Rear Derailleur	SRAM X.0
Cassette	SRAM PG-980, Power Glide II, 11-34, 9 Speed
Chain	SRAM PC-951
Crankset	TruVativ HammerSchmidt Alloy
Bottom Bracket	N/A
Seatpost	Race Face Evolve, 30.9mm x 375mm
Saddle	WTB Pure V Race with Love Channel and Comfort Zone, Cromoly Rails
Bar	Race Face Atlas AM, Double Butted Alloy, OS-31.8, 20mm Rise
Stem	Race Face Evolve AM, Threadless, with 31.8mm Bar Clamp
Grips	Marin FR Locking with Alloy Pro Drop Guard End Plug
Brakes Front	Avid Elixer CR Hydraulic Disc, with 7" Rotor
Brakes Rear	Avid Elixer CR Hydraulic Disc with 6" Rotor
Brake Levers	Avid Hydraulic Disc
Pedals	Shimano M424 Clipless

WOLF RIDGE 6.9 Ł2649

Marin Wolf Ridge 6.9

Sizes	S, M, L
Frame	6061 Aluminum, Fully Hydroformed Mainframe and Swingarm, Quad-Link 2.0 140mm Suspension System, with Modular 135mm Maxle Dropouts
Fork	RockShox Pike 454 Air U-Turn, 110mm-140mm with External Rebound Adjustment, Motion Control with External Floodgate, and 20mm Maxle Through Axle
Rear Shock	Fox Float RP23 with Rebound Adjustment, Dual Position ProPedal with 3 Position ProPedal Lever Adjustment
Headset	Orbit MX, 1 1/8", Threadless, Alloy
Rear Hub	Hope Pro 2, 32 Hole Disc with 12mm Through Axle
Front Hub	Hope Pro 2, 32 Hole Disc with 20mm Through Axle
Spokes	DT 15 Gauge Black Stainless
Rims	Mavic XM-719, 32 Hole Disc
Tyres	Maxxis Minion 26" x 2.35" Kevlar Bead Front, Maxxis High Roller 26" x 2.35" Kevlar Bead Rear
Shift Levers	Shimano XT, 2 Way and Instant Release, 9 Speed
Front Derailleur	Shimano XT
Rear Derailleur	Shimano Shadow XT
Cassette	SRAM PG-980, Power Glide II, 11-34, 9 Speed
Chain	SRAM PC-951
Crankset	FSA Gravity Light MegaExo, 44/32/22 With MegaExo BB
Bottom Bracket	FSA MegaExo System Integrated with Crankset
Seatpost	Race Face Evolve, 30.9mm x 375mm
Saddle	WTB Pure V Race with Love Channel and Comfort Zone, Cromoly Rails
Bar	Race Face Atlas AM, Double Butted Alloy, OS-31.8, 20mm Rise
Stem	Race Face Evolve AM, Threadless, with 31.8mm Bar Clamp
Grips	Marin FR Locking with Alloy Pro Drop Guard End Plug
Brakes Front	Avid Elixer CR Hydraulic Disc, with 7" Rotor
Brakes Rear	Avid Elixer CR Hydraulic Disc with 6" Rotor
Brake Levers	Avid Hydraulic Disc
Pedals	Shimano M424 Clipless

WOLF RIDGE 6.8 Ł2249

Marin Wolf Ridge 6.8

Sizes	S, M, L
Frame	6061 Aluminum, Fully Hydroformed Mainframe and Swingarm, Quad-Link 2.0 140mm Suspension System, with Modular 135mm Maxle Dropouts
Fork	RockShox Pike 426 U-Turn Air, 110mm-140mm with External Rebound Adjustment, Motion Control with External Floodgate, and 20mm Maxle Through Axle
Rear Shock	Fox Float RP23 with Rebound Adjustment, Dual Position ProPedal with 3 Position ProPedal Lever Adjustment
Headset	TH-857, 1 1/8", Threadless, Alloy
Rear Hub	SUNringlé Jumping Flea, 32 Hole Disc with 12mm Through Axle
Front Hub	SUNringlé Jumping Flea, 32 Hole Disc with 20mm Through Axle
Spokes	DT 15 Gauge Black Stainless
Rims	Mavic EN-321, 32 Hole Disc
Tyres	Maxxis Minion 26" x 2.35" Front, Maxxis High Roller 26" x 2.35" Rear
Shift Levers	Shimano SLX, 2 Way Release, 9 Speed
Front Derailleur	Shimano SLX
Rear Derailleur	Shimano Shadow XT
Cassette	SRAM PG-970, Power Glide II, 11-34, 9 Speed
Chain	SRAM PC-951
Crankset	Shimano SLX, 44/32/22, HollowTech II Arms
Bottom Bracket	Shimano with HollowTech II Arms Big Pipe Billet Integrated with Crankset
Seatpost	Syncros Derived OE, 25mm Offset, 2014, 30.9mm x 400mm
Saddle	WTB Pure V Comp with Love Channel and Comfort Zone
Bar	Syncros AM, Double Butted 2014 Alloy, OS-31.8, 20mm Rise
Stem	Syncros AM, Threadless, with 31.8mm Bar Clamp
Grips	Marin FR Locking with Alloy Pro Drop Guard End Plug
Brakes Front	Hayes Stroker Trail Hydraulic Disc with V7 Rotor
Brakes Rear	Hayes Stroker Trail Hydraulic Disc with V6 Rotor
Brake Levers	Hayes Hydraulic Disc
Pedals	Shimano M424 Clipless

WOLF RIDGE 6.7 Ł1799

Marin Wolf Ridge 6.7

Sizes	S, M, L
Frame	6061 Aluminum, Fully Hydroformed Mainframe and Swingarm, Quad-Link 2.0 140mm Suspension System, with Modular 135mm Maxle Dropouts
Fork	RockShox Pike 409 U-Turn Coil, 95mm-140mm with External Rebound Adjustment and Motion Control, and 20mm Maxle Through Axle
Rear Shock	Fox Float R with Rebound Adjustment
Headset	TH-888, 1 1/8", Threadless
Rear Hub	Alloy Cartridge Sealed, 32 Hole Disc, 12mm Through Axle
Front Hub	Alloy Cartridge Sealed, 32 Hole Disc, 20mm Through Axle
Spokes	DT 15 Gauge Black Stainless
Rims	WTB SpeedDisc All Mountain, Double Wall, 32 Hole Disc
Tyres	Kenda Nevegal, 26" x 2.35", Dual Tread Compound
Shift Levers	SRAM X-5, 9 Speed Trigger
Front Derailleur	Shimano Deore
Rear Derailleur	SRAM X-7
Cassette	SRAM PG-950, Power Glide II, 11-34, 9 Speed
Chain	SRAM PC-951
Crankset	TruVativ Blaze 3.1, 44/32/22, with Power Spline BB
Bottom Bracket	TruVativ with Sealed Cartridge and Power Spline
Seatpost	Comp Alloy Micro Adjust, 30.9mm x 400mm
Saddle	WTB Pure V Sport with Love Channel and Comfort Zone
Bar	A-XC Double Butted 6061 Alloy, OS-31.8mm, 42mm Rise
Stem	Gap OS Threadless with Alloy Face Plate, with 31.8mm Bar Clamp
Grips	Marin
Brakes Front	Avid Juicy 3 Hydraulic Disc with 7" Rotor
Brakes Rear	Avid Juicy 3 Hydraulic Disc with 6" Rotor
Brake Levers	Avid Hydraulic Disc
Pedals	Shimano M424 Clipless

QUAD XLT

QUAKE CL 7.9 Ł3249

Marin Quake CL 7.9

Sizes	S, M, L
Frame	6061 Aluminum with Edge II Plus Top Tube and Hydroformed Down Tube, 6061 QUAD-Link 2.0 170mm Suspension System, 150mm x 12mm Maxle Dropouts
Fork	RockShox Totem Coil, 180mm of Travel, with External Rebound and Compression Adjustment, Mission Control Damping, with Maxle 360 20mm Axle and 1.5" Steerer
Rear Shock	Marzocchi Rocco TST with Coil Spring Preload, Rebound Adjustment, and 5 position TST Compression Adjustment
Headset	Orbit DL. 1.5", Threadless, Forged Alloy Cups
Rear Hub	Shimano Saint, 32 Hole Disc with Centerlock
Front Hub	Shimano Saint, 20mm with Centerlock
Spokes	DT 14 Gauge Black Stainless
Rims	Mavic EX-325, 32 Hole Disc
Tyres	Kenda Nevegal, 26" x 2.5", Stick-E Rubber
Shift Levers	Shimano Saint, 2 Way and Instant Release, 9 Speed
Front Derailleur	Shimano SLX
Rear Derailleur	Shimano Saint Shadow
Cassette	Shimano XT, 11-34, 9 Speed
Chain	Shimano HG73
Crankset	Shimano Saint, 36/22, with E-13 Shift Guide Dual Ring Security and Saint Bashguard
Bottom Bracket	Shimano with HollowTech II Arms Big Pipe Billet Integrated with Crankset
Seatpost	Syncros Derived, 25mm Offset, 2014, 31.6mm x 400mm
Saddle	WTB Pure V Race with Love Channel and Comfort Zone, Cromoly Rails
Bar	Syncros FR, Double Butted 2014 Alloy, OS-31.8, 20mm Rise
Stem	Syncros FR, Threadless, with 31.8mm Bar Clamp
Grips	Marin FR Locking with Alloy Pro Drop Guard End Plug
Brakes Front	Shimano Saint Hydraulic Disc
Brakes Rear	Shimano Saint Hydraulic Disc
Brake Levers	Shimano Saint
Pedals	Syncros Meat Hook

QUAKE CL 7.8 Ł2399

Marin Quake CL 7.8

Sizes	S, M, L
Frame	6061 Aluminum with Edge II Plus Top Tube and Hydroformed Down Tube, 6061 QUAD-Link 2.0 170mm Suspension System, 150mm x 12mm Maxle Dropouts
Fork	RockShox Domain 318 Coil, 180mm of Travel, with External Rebound and Compression Adjustment, Mission Control Damping, with Maxle 360 20mm Axle and 1.5" Steerer
Rear Shock	Marzocchi Rocco TST with Coil Spring Preload, Rebound Adjustment, and 5 position TST Compression Adjustment
Headset	Orbit DL. 1.5", Threadless, Forged Alloy Cups
Rear Hub	SUNringlé Jumping Flea, 32 Hole Disc with 12mm Through Axle
Front Hub	SUNringlé Jumping Flea, 32 Hole Disc with 20mm Through Axle
Spokes	DT 14 Gauge Black Stainless
Rims	Mavic EN-321, 32 Hole Disc
Tyres	Kenda Nevegal, 26" x 2.5", Stick-E Rubber
Shift Levers	SRAM X-5, 9 Speed Trigger
Front Derailleur	SRAM X-7
Rear Derailleur	SRAM X-9
Cassette	SRAM PG-950, Power Glide II, 11-34, 9 Speed
Chain	SRAM PC-951
Crankset	TruVativ Hussefelt 2.2 RG DH, 36/24 with Rock Guard, with E-13 Shift Guide Dual Ring Security and Rock Guard
Bottom Bracket	TruVativ Howitzer XR
Seatpost	Syncros Derived, 25mm Offset, 2014, 31.6mm x 400mm
Saddle	WTB Pure V Race with Love Channel and Comfort Zone, Cromoly Rails
Bar	Syncros FR, Double Butted 2014 Alloy, OS-31.8, 20mm Rise
Stem	Syncros FR, Threadless, with 31.8mm Bar Clamp
Grips	Marin FR Locking with Alloy Pro Drop Guard End Plug
Brakes Front	Avid Code 5 Hydraulic Disc with 8" Rotor
Brakes Rear	Avid Code 5 Hydraulic Disc with 7" Rotor
Brake Levers	Avid Hydraulic Disc
Pedals	BMX Platform

WOMEN'S BIKES

MOUNT VISION 5.7 Ł1849

Marin Mount Vision 5.7

Sizes	15", 17.5"
Frame	6066 Aluminum, Fully Hydroformed Mainframe and Swingarm, Quad-Link 2.0 120mm Suspension System, with Modular Dropouts
Fork	Fox 32 F120RL, 120mm with Rebound Adjustment, Lockout and Air Spring Preload
Rear Shock	Fox Float RP2 with Rebound Adjustment, Dual Position ProPedal Lever
Headset	TH-857, 1 1/8", Threadless, Alloy
Rear Hub	Mavic Cross Ride Disc, 24 Hole
Front Hub	Mavic Cross Ride Disc, 24 Hole
Spokes	Mavic Cross Ride Disc Wheelset
Rims	Mavic Cross Ride Disc, 24 Hole Front, 24 Hole Rear, Wheelset
Tyres	WTB Prowler MX Folding, 26" x 2.1" (49/52)
Shift Levers	Shimano Deore, 2 Way Release, 9 Speed
Front Derailleur	Shimano Deore
Rear Derailleur	Shimano Shadow XT
Cassette	Shimano HG61, 11-34, 9 Speed
Chain	Shimano HG53
Crankset	TruVativ Firex 3.2, 44/32/22 with 2 Alloy Chainrings and Giga X Pipe External BB System
Bottom Bracket	TruVativ with Giga X Pipe Exterior System Integrated with Crankset
Seatpost	Comp Alloy Micro Adjust, 30.9mm x 400mm
Saddle	WTB Deva HP Comp
Bar	Women's Custom Taper Double Butted Alloy, 31.8mm Center Tapering to 19.1mm Control Section, with Shift and Brake Lever Adjustment Shims with +/-3mm of Adjustment, with 25.4mm Rise
Stem	FSA OS190 Threadless, with Alloy Face Plate and 31.8mm Bar Clamp
Grips	Marin Custom Dual Density Women’s Grips for 19.1mm Bars
Brakes Front	Hayes Stroker Trail Hydraulic Disc with V6 Rotor
Brakes Rear	Hayes Stroker Trail Hydraulic Disc with V6 Rotor
Brake Levers	Hayes Hydraulic Disc
Pedals	Shimano M520 Clipless

MOUNT VISION 5.6 Ł1399

Marin Mount Vision 5.6

Sizes	15", 17.5"
Frame	6066 Aluminum, Fully Hydroformed Mainframe and Swingarm, Quad-Link 2.0 120mm Suspension System, with Modular Dropouts
Fork	RockShox TORA Trail 302 Solo Air, 120mm with External Rebound Adjustment and TurnKey Lockout
Rear Shock	Fox Float R with Rebound Adjustment
Headset	TH-888, 1 1/8" Threadless
Rear Hub	Shimano, 32 Hole Disc
Front Hub	Shimano, 32 Hole Disc
Spokes	WTB 15 Gauge Black Stainless
Rims	Mavic XM-117, 32 Hole Disc
Tyres	WTB Prowler MX Folding, 26" x 2.1" (49/52)
Shift Levers	Shimano Deore, 2 Way Release, 9 Speed
Front Derailleur	Shimano Deore
Rear Derailleur	Shimano Deore
Cassette	SRAM PG-950, Power Glide II, 11-34, 9 Speed
Chain	Shimano HG53
Crankset	TruVativ Five D 3.1, 44/32/22 with Alloy Outer Chainring
Bottom Bracket	TruVativ with Sealed Cartridge
Seatpost	Comp Alloy Micro Adjust, 30.9mm x 400mm
Saddle	WTB Speed She Sport with Love Channel and Comfort Zone
Bar	Women's Custom Taper Double Butted Alloy, 31.8mm Center Tapering to 19.1mm Control Section, with Shift and Brake Lever Adjustment Shims with +/-3mm of Adjustment, with 25.4mm Rise
Stem	Marin OS Alloy Threadless, with 31.8mm Bar Clamp
Grips	Marin Custom Dual Density Women's Grips for 19.1mm Bars
Brakes Front	Avid Juicy 3 Hydraulic Disc with 6" Rotor
Brakes Rear	Avid Juicy 3 Hydraulic Disc with 6" Rotor
Brake Levers	Avid Hydraulic Disc
Pedals	Ritchey Logic Mountain V4 Clipless

Marin 2008

QUAD XC 120

XC PERFORMANCE LIGHTWEIGHTS: Marin's 2007 bikes featured their first all-new XC frame design since the year 2002,using the QUAD link 2.0 system which appeared so successfully in 2006 on the Whyte E5.
The 2008 XC range,again with a very plush 120mm travel front and rear,has been refined to give even lighter weight than before.A further refinement is the new design of rear end (called a modular dropout) which gives extra strength and stiffness to the swingarm.

Together with the super-lightweight Whytes, these bikes set the benchmark for state-of-the-art XC suspension design.

EAST PEAK Ł1299SEE SALE PAGES!

Already proving to be an excellent seller,the East Peak is Marin's cheapest XC suspension bike.Featuring a good groupset for its price ,a Fox rear shock and a Marzocchi fork with lockout.The East Peak has exactly the same frame and swingarm as the Rift,Mt.Vision and Mt.Vision Pro,so it's easy to upgrade it over the years,if you wish,as parts get worn out or damaged.(Yes,sadly no-one has as yet invented the crash-proof bike !)

Marin East Peak

Sizes	S, M, L, LX
Frame	6066 Aluminum, Fully Hydroformed Mainframe and Swingarm, QUAD-Link XC 2.0 Suspension System, Disc Specific, with New Modular Dropouts
Fork	Marzocchi MX Pro Lo, 120mm Travel, with Preload, Rebound Adjustment and Lockout
Rear Shock	Fox Float R with Rebound Adjustment
Headset	TH-888, 1 1/8in Threadless
Rear Hub	Shimano Deore, 32 Hole Disc
Front Hub	Shimano Deore, 32 Hole Disc
Spokes	WTB 15 Gauge Black Stainless
Rims	Mavic XM-117, 32 Hole Disc
Tyres	WTB Prowler MX Comp, 26” x 2.1" (49/52)
Shift Levers	Shimano Deore, 2 Way Release, 9 Speed
Front Derailleur	Shimano Deore
Rear Derailleur	Shimano LX
Cassette	Shimano, 11-32, 9 Speed
Chain	SRAM PC-951
Crankset	TruVativ Five D 3.1, 44/32/22 with Alloy Outer Chainring
Bottom Bracket	TruVativ with Sealed Cartridge
Seatpost	Comp Alloy Micro Adjust, 30.9mm x 400mm
Saddle	WTB Speed V ATB with Love Channel and Comfort Zone
Bar	Double Butted 6061 Alloy, OS-31.8mm, 25.4mm Rise
Stem	Marin OS Alloy Threadless, with 31.8mm Bar Clamp
Grips	Super Diamond
Brakes	Avid Juicy 3 Hydraulic Disc
Brake Levers	Avid Hydraulic Disc
Pedals	Ritchey Logic Mountain V4 Clipless

QUAD Trail 140

ATTACK TRAIL Ł2299SEE SALE PAGES!

Marin Attack Trail

Sizes	S, M, L
Frame	6061 Aluminum, Fully Hydroformed Mainframe and Swingarm, QUAD-Link XC 2.0 Suspension System, Disc Specific, with 135mm Maxle Dropouts
Fork	RockShox Pike 454 Air U-Turn, 110mm-140mm with External Rebound Adjustment, Motion Control with External Foodgate, and 20mm Maxle Through Axle
Rear Shock	Fox Float RP23 with Rebound Adjustment, Dual Position ProPedal with 3 Position ProPedal Lever Adjustment
Headset	Orbit MX, 1 1/8” Threadless, Alloy
Rear Hub	Hope Pro 2, 32 Hole Disc with 12mm Through Axle
Front Hub	Hope Pro 2, 32 Hole Disc with 20mm Through Axle
Spokes	DT 15 Gauge Black Stainless
Rims	Mavic XM-719, 32 Hole Disc
Tyres	Kenda Nevegal, 26" x 2.35", Dual Tread Compound, Kevlar Bead
Shift Levers	Shimano XT, 2 Way and Instant Release, 9 Speed
Front Derailleur	Shimano XT
Rear Derailleur	Shimano XT
Cassette	SRAM PG-980, Power Glide II, 9 Speed, 11-34
Chain	SRAM PC-951
Crankset	FSA Gravity Light MegaExo, 44/32/22 With MegaExo BB
Bottom Bracket	FSA MegaExo System Integrated with Crankset
Seatpost	Syncros Derived, 25° Offset, 6061, 30.9mm x 400mm
Saddle	WTB Pure V Race with Love Channel and Comfort Zone, Cromoly Rails
Bar	Gravity Lite, Double Butted Alloy, OS-31.8mm, 40mm Rise
Stem	Gravity Light OS Threadless with Alloy Face Plate and 31.8mm Bar Clamp
Grips	Marin FR Locking with Alloy Pro Drop Guard End Plug
Brakes	Shimano XT Hydraulic Disc
Brake Levers	Shimano XT Hydraulic Disc
Pedals	Crank Bros Acid

WOLF RIDGE Ł1899SEE SALE PAGES!

Marin Wolf Ridge

Sizes	S, M, L
Frame	6061 Aluminum, Fully Hydroformed Mainframe and Swingarm, QUAD-Link XC 2.0 Suspension System, Disc Specific, with 135mm Maxle Dropouts
Fork	RockShox Pike 426 U-Turn Coil, 95mm-140mm with External Rebound Adjustment and External Motion Control
Rear Shock	Fox Float RP23 with Rebound Adjustment, Dual Position ProPedal with 3 Position ProPedal Lever Adjustment
Headset	TH-857, 1 1/8in Threadless, Alloy
Rear Hub	Hope Pro 2, 32 Hole Disc with 12mm Through Axle
Front Hub	Hope Pro 2, 32 Hole Disc with 20mm Through Axle
Spokes	DT 15 Gauge Black Stainless
Rims	Syncros DP25, Double Wall, 32 Hole Disc
Tyres	Kenda Nevegal, 26" x 2.35", Dual Tread Compound,
Shift Levers	Shimano LX, 2 Way Release, 9 Speed
Front Derailleur	Shimano Deore
Rear Derailleur	Shimano XT
Cassette	SRAM PG-970, Power Glide II, 9 Speed, 11-34
Chain	SRAM PC-951
Crankset	FSA Gap MegaExo, 44/32/22, With MegaExo BB
Bottom Bracket	FSA MegaExo System Integrated with Crankset
Seatpost	Syncros Derived, 30.9mm x 400mm
Saddle	WTB Pure V Comp with Love Channel and Comfort Zone
Bar	Syncros Bulk, Double Butted Alloy, OS-31.8, 40mm Rise
Stem	Syncros AM, Threadless, with 31.8mm Bar Clamp
Grips	Marin FR Locking with Alloy Pro Drop Guard End Plug
Brakes	Front - Hayes Stroker TRAIL Hydraulic Disc with V7 Rotor Rear - Hayes Stroker TRAIL Hydraulic Disc with V6 Rotor
Brake Levers	Hayes Hydraulic Dis
Pedals	Crank Bros Acid

Marin 2007

QUAD XC

EAST PEAK Ł1375 SEE SALE PAGES !

Marin East Peak

Sizes	S, M, L
Frame	Fully Hydroformed 6061 Aluminum Mainframe
Swingarm	6061 Aluminum Swingarm, Quad-Link XC 2.0 Suspension System, Disc Brake Only
Fork	Marzocchi MX Pro Lo, 120mm Travel, with Preload, Rebound Adjustment and Lockout
Rear Shock	Fox Float R, with Rebound Adjustment
Headset	TH-888, 1 1/8in Threadless
Rear Hub	Shimano Deore, 32 Hole Disc
Front Hub	Shimano, 32 Hole Disc
Spokes	WTB 15 Gauge Black Stainless
Rims	Mavic XM-117, 32 Hole Disc
Tyres	WTB MotoRaptor Comp, 26” x 2.14in (49/52)
Shift Levers	Shimano LX, with 2 Way Release
Front Derailleur	Shimano Deore
Rear Derailleur	Shimano LX
Cassette	Shimano 9 Speed, 11-32
Chain	Shimano HG-53
Crankset	TruVativ Five D, 44/32/22 with 1 Alloy Chainring
Bottom Bracket	TruVativ Cartridge Sealed
Seatpost	Comp Alloy Micro Adjust
Saddle	WTB Speed V ATB, with Love Channel and Comfort Zone
Bar	Double Butted 6061 Alloy, OS-31.8mm, 25.4mm Rise
Stem	FSA OS190 Threadless with Alloy Face Plate, with 31.8mm Bar Clamp
Grips	WTB Moto Grip
Brakes	Avid Juicy 3 Hydraulic Disc
Brake Levers	Avid Hydraulic
Pedals	Ritchey Logic Mountain V4 Clipless

Trek 2009
120mm Rear Travel

FUEL EX 5.5 Ł1000

Trek Fuel EX 5.5

Sizes	15.5, 17.5, 18.5, 19.5, 21.5"
Frame	Alpha Red Aluminum w/Hi/Lo chainstays, oversized bearings, 120mm travel
Front Suspension	RockShox Tora 302 Coil w/rebound, TurnKey lockout, alloy steerer, 120mm
Rear Suspension	Fox Float RP2 w/air pressure, Pro Pedal, rebound; 7.5x2.0"
Wheels	Shimano M495 disc hubs; Bontrager Ranger rims w/welded seams and eyelets
Tyres	Bontrager Jones XR, 26x2.2/2.25"; 30 tpi
Shifters	Shimano Deore, 9 speed
Front Derailleur	Shimano Deore
Rear Derailleur	Shimano Deore
Crank	Shimano M442 Octalink 44/32/22
Cassette	SRAM PG950 11-34, 9 speed
Pedals	Alloy platform w/clips and straps
Saddle	Bontrager Race Basic
Seat Post	Bontrager SSR, 20mm offset
Handlebars	Bontrager Race, 40mm rise, 650mm width
Stem	Bontrager SSR, 10 degree, 31.8mm
Headset	VP-A76C AHS semi-cartridge
Brakeset	Shimano M486 hydraulic disc; 180mm rotors (160mm rear rotor on 15.5, 17.5, 18.5")

FUEL EX 6.5 Ł1250

Trek Fuel EX 6.5

Sizes	15.5, 17.5, 18.5, 19.5, 21.5"
Frame	Alpha Red Aluminum w/Hi/Lo chainstays, oversized bearings, 120mm travel
Front Suspension	RockShox Recon 335 SL Air w/TurnKey lockout, rebound, alloy steerer, 130mm
Rear Suspension	Fox Float RP2 w/air pressure, Pro Pedal, rebound; 7.5x2.0"
Wheels	Shimano 525 Custom SL rear hub, Bontrager Sealed front hub; Bontrager Ranger rims w/welded seams and eyelets
Tyres	Bontrager Jones XR w/Kevlar bead, 26x2.2/2.25"; 60 tpi
Shifters	Shimano Deore, 9 speed
Front Derailleur	Shimano Deore
Rear Derailleur	Shimano Deore XT "Shadow"
Crank	Shimano M521 Hollowtech, Octalink 44/32/22
Cassette	SRAM PG950 11-34, 9 speed
Pedals	Shimano M505, clipless
Saddle	Bontrager Race Basic
Seat Post	Bontrager Race, 5mm offset
Handlebars	Bontrager Race, 40mm rise, 650mm width
Stem	Bontrager SSR, 10 degree, 31.8mm
Headset	VP-A76C AHS semi-cartridge
Brakeset	Avid Juicy 3, hydraulic disc; 185mm rotors (160mm rear rotor on 15.5, 17.5, 18.5")

FUEL EX 7 Ł1500

Trek Fuel EX 7

Sizes	15.5, 17.5, 18.5, 19.5, 21.5"
Frame	Alpha Red Aluminum w/ABP, Full Floater, alloy EVO Link, oversized bearings, 120mm travel
Front Suspension	RockShox Recon 351 Solo Air w/positive air pressure, Motion Control, rebound, compression, lockout, alloy steerer, 130mm
Rear Suspension	Fox Float RP2 XV Air Can, custom "trail tuned" w/Pro Pedal, rebound; 7.5x2.0"
Wheels	Shimano 525 Custom SL rear hub, Bontrager sealed front hub; Bontrager Duster, 28mm rims w/welded seams and eyelets
Tyres	Bontrager Jones XR w/Kevlar bead, 26x2.2/2.25"; 60 tpi
Shifters	Shimano Deore
Front Derailleur	Shimano Deore
Rear Derailleur	Shimano Deore SLX "Shadow"
Crank	Shimano M532 44/32/22
Cassette	SRAM PG950 11-32
Pedals	Shimano M505, clipless
Saddle	Bontrager Race w/hollow Cro-Moly rails
Seat Post	Bontrager Race, 5mm offset
Handlebars	Bontrager Race, 40mm rise, 650mm width
Stem	Bontrager SSR, 10 degree, 31.8mm
Headset	VP-A58ACT-TK AHS semi-cartridge
Brakeset	Avid Juicy 3, hydraulic disc; 185mm rotors (160mm rear rotor on 15.5, 17.5, 18.5")

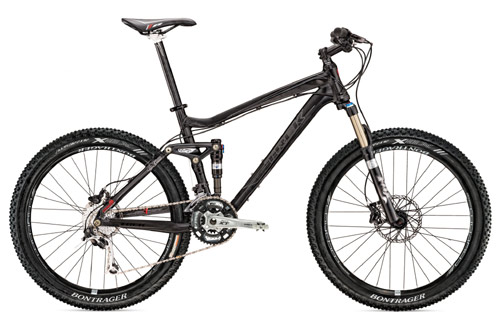

FUEL EX 8 Ł1700

Trek Fuel EX 8

Sizes	15.5, 17.5, 18.5, 19.5, 21.5"
Frame	Alpha Red Aluminum w/ABP, Full Floater, magnesium EVO Link, oversized bearings, 120mm travel
Front Suspension	Fox Float 130 RL, custom "trail tuned" w/air adjust, rebound, lockout, alloy steerer, 130mm
Rear Suspension	Fox Float RP2 XV Air Can, custom "trail tuned" w/Pro Pedal, rebound; 7.5x2.0"
Wheels	Bontrager Rhythm wheel system, 28mm, tubeless ready
Tyres	Bontrager Jones XR w/Kevlar bead, 26x2.2/2.25"; 127 tpi
Shifters	Shimano SLX SL
Front Derailleur	Shimano SLX SL
Rear Derailleur	Shimano Deore XT "Shadow"
Crank	Shimano SLX M660 44/32/22
Cassette	SRAM PG970 11-32, 9 speed
Pedals	CrankBrothers Custom Candy C
Saddle	Bontrager Race w/hollow Cro-Moly rails
Seat Post	Bontrager Race, 5mm offset
Handlebars	Bontrager Race, 40mm rise, 31.8mm
Stem	Bontrager Race Lite, 7 degree, 31.8mm
Headset	VP-A58ACT-TK AHS semi-cartridge
Brakeset	Avid Juicy 5, hydraulic disc; 185mm rotors (160mm rear rotor on 15.5, 17.5, 18.5")

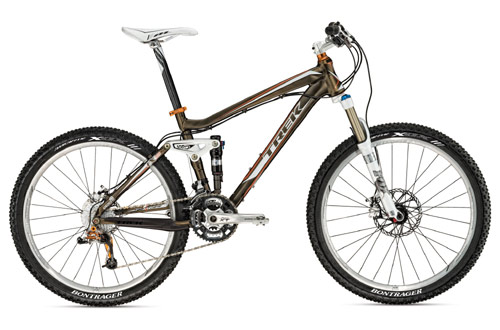

FUEL EX 9 Ł2100

Trek Fuel EX 9

Sizes	15.5, 17.5, 18.5, 19.5, 21.5"
Frame	Alpha Red Aluminum w/ABP, Full Floater, magnesium EVO Link, oversized bearings, 120mm travel
Front Suspension	Fox RP24, custom for Trek, "trail tuned" w/4-position platform to lockout, air adjust, rebound, alloy steerer, 130mm
Rear Suspension	Fox Float RP23 XV Air Can, custom "trail tuned" w/Pro Pedal, rebound; 7.5x2.0""
Wheels	Bontrager Rhythm Elite wheel system, 28mm, tubeless ready
Tyres	Bontrager Jones XR w/Kevlar bead, 26x2.2/2.25"; 127 tpi
Shifters	SRAM X-9, 9 speed w/MatchMaker
Front Derailleur	Shimano Deore XT
Rear Derailleur	SRAM X-0
Crank	Shimano Deore XT 44/32/22
Cassette	SRAM PG970 11-32, 9 speed
Pedals	CrankBrothers Custom Candy C
Saddle	Bontrager Race Lite w/hollow stainless steel rails
Seat Post	Bontrager Race Lite, 5mm offset
Handlebars	Bontrager Race Lite, 40mm rise, 31.8mm
Stem	Bontrager Race X Lite, 7 degree, 31.8mm
Headset	VP-A58ACT-TK AHS semi-cartridge
Brakeset	Avid Elixir R Custom SL, hydraulic disc; 185mm rotors (160mm rear rotor on 15.5, 17.5, 18.5")

Trek 2009
120mm Rear Travel
Women's Specific Design

FUEL EX 5.5 WSD Ł1000

Trek Fuel EX 5.5 WSD

Sizes	Women's 14.5, 15.5, 16.5, 17.5"
Frame	Alpha Red Aluminum w/Hi/Lo chainstays, oversized bearings, 120mm travel
Front Suspension	RockShox Tora 302 Coil w/rebound, TurnKey lockout, alloy steerer, 120mm
Rear Suspension	Fox Float RP2 w/air pressure, Pro Pedal, rebound; 7.5x2.0"
Wheels	Shimano M495 disc hubs; Bontrager Ranger rims w/welded seams and eyelets
Tyres	Bontrager Jones XR, 26x2.2/2.25"; 30 tpi
Shifters	Shimano Deore, 9 speed
Front Derailleur	Shimano Deore
Rear Derailleur	Shimano Deore
Crank	Shimano M442 Octalink 44/32/22
Cassette	SRAM PG950 11-34, 9 speed
Pedals	Alloy platform w/clips and straps
Saddle	Bontrager FIT Basic
Seat Post	Bontrager SSR, 20mm offset
Handlebars	Bontrager Race, 40mm rise, 650mm width
Stem	Bontrager SSR, 10 degree, 31.8mm
Headset	VP-A76C AHS semi-cartridge
Brakeset	Shimano M486 hydraulic disc; 160mm rotors

FUEL EX 8 WSD Ł1700

Trek Fuel EX 8 WSD

Sizes	Women's 14.5, 15.5, 16.5, 17.5"
Frame	Alpha Red Aluminum w/ABP, Full Floater, magnesium EVO Link, oversized bearings, 120mm travel
Front Suspension	Fox Float 130 RL, custom "trail tuned" w/air adjust, rebound, lockout, alloy steerer, 130mm
Rear Suspension	Fox Float RP2 XV Air Can, custom "trail tuned" w/Pro Pedal, rebound; 7.5x2.0"
Wheels	Bontrager Rhythm wheel system, 28mm, tubeless ready
Tyres	Bontrager Jones XR w/Kevlar bead, 26x2.2/2.25"; 127 tpi
Shifters	Shimano SLX SL
Front Derailleur	Shimano SLX SL
Rear Derailleur	Shimano Deore XT "Shadow"
Crank	Shimano SLX M660 44/32/22
Cassette	SRAM PG970 11-32, 9 speed
Pedals	CrankBrothers Custom Candy C
Saddle	Bontrager Race Lux FIT w/hollow Cro-Moly rails
Seat Post	Bontrager Race Lite, 5mm offset
Handlebars	Bontrager Race, 40mm rise, 31.8mm
Stem	Bontrager Race Lite, 7 degree, 31.8mm
Headset	VP-A58ACT-TK AHS semi-cartridge
Brakeset	Avid Juicy 5, hydraulic disc; 160mm rotors

Trek 2009
150mm Rear Travel

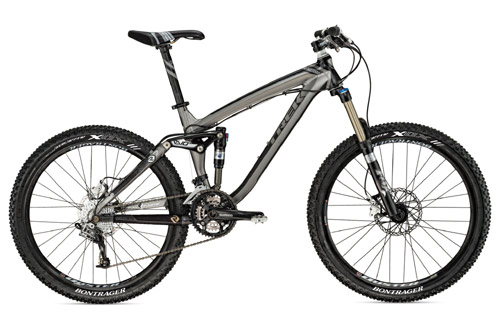

Remedy 7 Ł1900

Trek Remedy 7

Sizes	15.5, 17.5, 19.5, 21.5"
Frame	Alpha Red Aluminum w/ABP, Full Floater, E2 head tube, alloy EVO Link, oversized bearings, 150mm travel
Front Suspension	RockShox Lyrik IS U-Turn w/E2 steerer, 20mm Maxle, 115-160mm
Rear Suspension	Fox RP2 XV Air Can, custom "all-mountain tuned" w/Pro Pedal, rebound; 8.0x2.25"
Wheels	Bontrager Rhythm wheel system, 28mm, tubeless ready
Tyres	Kenda Nevegal w/SWS sidewall protection, 26x2.35"; 127 tpi
Shifters	Shimano SLX SL
Front Derailleur	Shimano SLX, high mount
Rear Derailleur	Shimano SLX "Shadow"
Crank	Shimano SLX 44/32/22
Cassette	SRAM PG950 11-32, 9 speed
Pedals	n/a
Saddle	Bontrager Rhythm Basic
Seat Post	Bontrager Race Lite, 5mm offset
Handlebars	Bontrager Race, 40mm rise, 31.8mm, 690mm width
Stem	Bontrager Race Lite, 7 degree, 31.8mm
Headset	Frustum Cane Creek SE Light Edition; 1 1/8" top, 1.5" bottom
Brakeset	Avid Juicy 5, hydraulic disc; 203mm front rotor, 185mm rear rotor

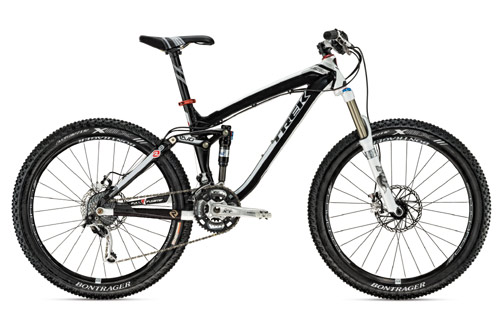

Remedy 8 Ł2300

Trek Remedy 8

Sizes	15.5, 17.5, 19.5, 21.5"
Frame	Alpha Red Aluminum w/ABP, Full Floater, E2 head tube, alloy EVO Link, oversized bearings, 150mm travel
Front Suspension	RockShox Lyrik 2-step w/E2 alloy steerer, 20mm Maxle, 115-160mm
Rear Suspension	Fox RP23 XV Air Can, custom "all-mountain tuned" w/3-position Pro Pedal, rebound; 8.0x2.25"
Wheels	Bontrager Rhythm Comp wheel system, 28mm, tubeless ready
Tyres	Kenda Nevegal w/SWS sidewall protection, 26x2.35"; 127 tpi
Shifters	Shimano Deore XT
Front Derailleur	Shimano Deore XT, high mount
Rear Derailleur	Shimano Deore XT "Shadow"
Crank	Shimano Deore XT 44/32/22
Cassette	SRAM PG950 11-32, 9 speed
Pedals	n/a
Saddle	Bontrager Rhythm w/hollow Cro-Moly rails
Seat Post	Bontrager Race Lite, 5mm offset
Handlebars	Bontrager Race, 40mm rise, 31.8mm, 690mm width
Stem	Bontrager Race Lite, 7 degree, 31.8mm
Headset	Frustum Cane Creek SE Light Edition; 1 1/8" top, 1.5" bottom
Brakeset	Shimano Deore XT Ti, custom Ti for Trek; 203mm front rotor, 180mm rear rotor

Remedy 9 Ł2600

Trek Remedy 9

Sizes	15.5, 17.5, 19.5, 21.5"
Frame	Alpha Red Aluminum w/ABP, Full Floater, E2 head tube, alloy EVO Link, oversized bearings, 150mm travel
Front Suspension	Fox 36 Talas w/E2 alloy steerer, high/low speed compression, rebound, 20mm QR axle, 120-160mm
Rear Suspension	Fox RP23 XV Air Can, custom "all-mountain tuned" w/3-position Pro Pedal, rebound; 8.0x2.25"
Wheels	Bontrager Rhythm Pro wheel system w/Scandium rims, 28mm, tubeless ready
Tyres	Kenda Nevegal w/SWS sidewall protection, 26x2.35"; 127 tpi
Shifters	SRAM X-0, 9 speed w/MatchMaker
Front Derailleur	Shimano XTR, high mount
Rear Derailleur	SRAM X-0
Crank	Shimano XTR 44/32/22
Cassette	SRAM PG970 11-32, 9 speed
Pedals	n/a
Saddle	Bontrager Rhythm Pro w/hollow titanium rails
Seat Post	Bontrager Race Lite, 5mm offset
Handlebars	Bontrager Rhythm Pro, 50mm rise, 31.8mm, 710mm width
Stem	Bontrager Race X Lite, 7 degree, 31.8mm
Headset	Frustum Cane Creek SE Light Edition; 1 1/8" top, 1.5" bottom
Brakeset	Avid Elixir CR w/carbon levers; 203mm front rotor, 180mm rear rotor

Trek 2008

FUEL EX 8 Ł1600SEE SALE PAGES!

Trek Fuel EX 8

Sizes	15.5" 17.5" 18.5" 19.5" 21.5"
Frame	Alpha Red Aluminum w/R1i Trail Tuned Suspension, ABP pivot, Full Floater, Aluminum EVO Link, Hi/Lo chainstays, oversized sealed bearings, 120mm rear wheel travel
Fork	Fox Float 130 RL w/air pressure, rebound, lockout, alloy steerer, 130mm
Rear Suspension	Fox Float RP2 w/ Pro Pedal, rebound, custom tuned
Wheels	Bontrager Race
Tyres	Bontrager Jones XR, 26x2.2/2.25"; 120 tpi, folding
Shifters	Shimano Deore LX, 9 speed
Front Derailleur	Shimano Deore LX
Rear Derailleur	Shimano Deore XT "Shadow"
Crank	Shimano Deore LX 44/32/22
Cassette	SRAM PG970 11-32, 9 speed

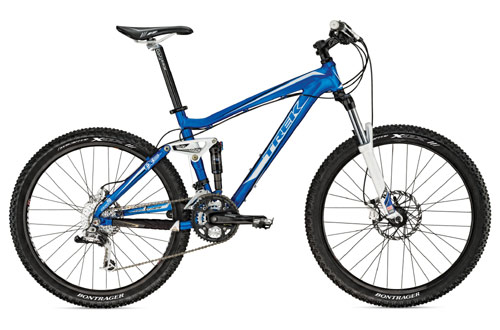

Pedals	Shimano M520, clipless
Saddle	Bontrager Race
Seat Post	Bontrager Race Lite
Handlebars	Bontrager Race, 40mm rise, 31.8mm
Stem	Bontrager Race, 7 degree, 31.8mm
Headset	Aheadset w/cartridge bearings, sealed, alloy
Brakeset	Avid Juicy 5, hydraulic disc; 185mm front, 160mm rear rotor

*Note - all prices and specifications are subject to change without notice.

Buying your bike from Stanley Fearn's

When you buy a bike from us you know it is ready to ride - we spend a lot of time carefully setting bikes up before we let them out of the shop. We think our staff and service package are second to none.

Payment

We accept cash, cheques and almost all debit cards and credit cards (except American Express).

HISTORY	Our Staff	The Peak District
Service Package	How to find Us	Choosing a Bike
Hardtail	Full Suspension	Hybrid, Comfort & Urban
BMX	Slalom, Trials & Jump	Road Bikes
Accessories	Folding Bikes	SALE!

STANLEY FEARN CYCLES LTD
19, Bakewell Rd, Matlock, Derbyshire DE4 3AU
Telephone +44 (0)1629 582089
Email:info@stanleyfearns.co.uk
Opening Times:

Monday 9.00am - 6.00pm ( 5.30 Jan, Feb, March)

Tuesday 9.00am - 6.00pm ( 5.30 Jan, Feb, March)

Wednesday 9.00am - 6.00pm ( 5.30 Jan, Feb, March)

Thursday Closed ALL DAY

Friday 9.00am - 6.00pm ( 5.30 Jan, Feb, March)

Saturday 9.00am - 5.30pm (the same time all year)

Sunday Closed ALL DAY

Bank Holidays Closed ALL DAY

Web site created by Halchemy

Website design and content © 1999, 2006 Halchemy and Stanley Fearn

Monday	9.00am - 6.00pm ( 5.30 Jan, Feb, March)
Tuesday	9.00am - 6.00pm ( 5.30 Jan, Feb, March)
Wednesday	9.00am - 6.00pm ( 5.30 Jan, Feb, March)
Thursday	Closed ALL DAY
Friday	9.00am - 6.00pm ( 5.30 Jan, Feb, March)
Saturday	9.00am - 5.30pm (the same time all year)
Sunday	Closed ALL DAY
Bank Holidays	Closed ALL DAY
